VPN client to IPSEC configuration

ictforever
Posts: 15
Freshman Member



Hi everyone,
I did follow:

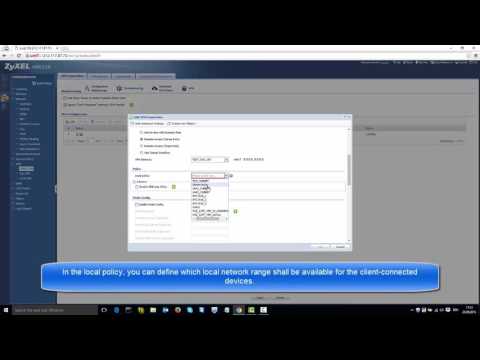

https://www.youtube.com/watch?v=piUP7P3Vu1M

Please check the above video and go to the time of: 1:05
When I select WAN1(it is showing 192.168.1.2)
I have my firewall behind the modem ISP
How will I configure it further?
Thanks a lot!
Regards
0
Comments
-
Hi @ictforever,
Go straight to set firewall interface wan1 IP(192.168.1.2) on USG phase 1 “My address”, there is no need to set up upper layer router public IP, and make sure the upper layer router create a port mapping for NATT port(UDP 4500) because it behind a router, other part is same as the video.
