I would like to get visio stentles for zyxel switchs

Denis2025

I would like to get visio stentles for GS series.

Specifically GS1900-24HP and XGS2210-28hp

Zyxel_Judy

Hi @Denis2025 ,

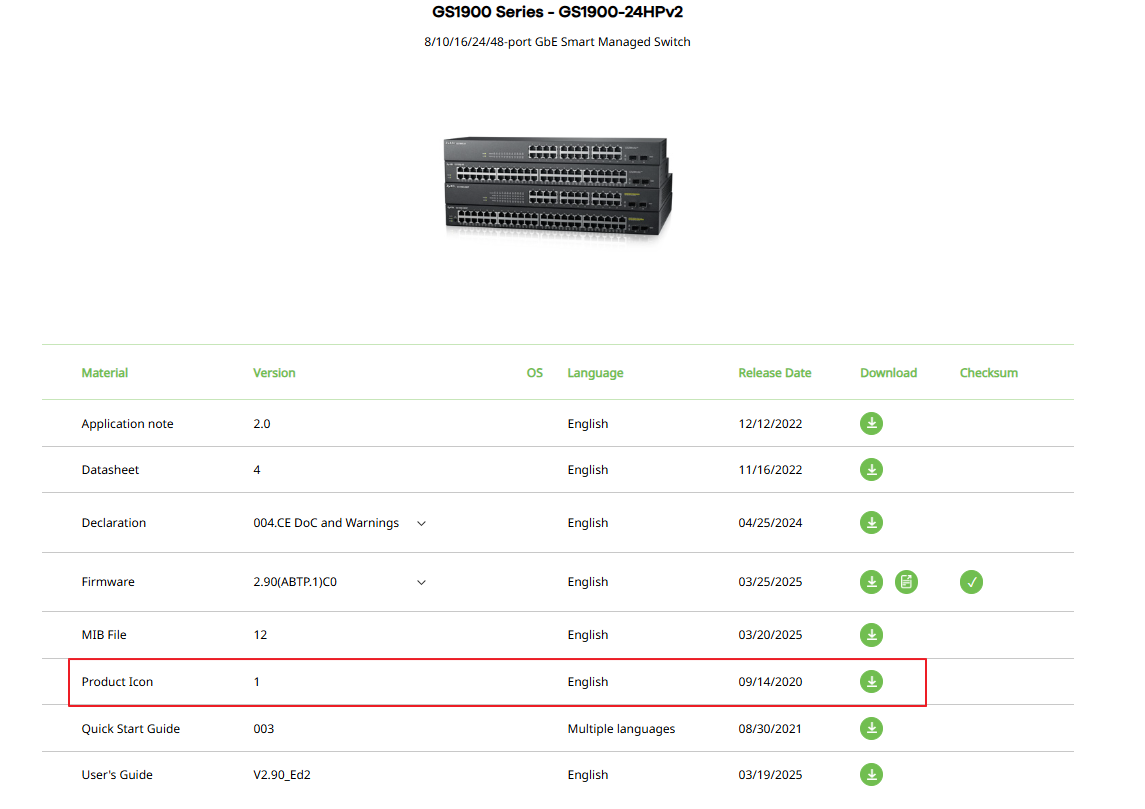

You can get Visio stencils for the switch by following these steps:

1. Go to the Zyxel download library
2. Type the switch model name in the search
3. Click on the Product icon
4. Download the Visio stencils from the available files

Denis2025

..

Denis2025

https://community.zyxel.com/en/discussion/comment/78287#Comment_78287

You're joke, these are png files, not vvs.

I read the articles like this:

ZyXEL makes preparing network projects even easier!ZyXEL announces an expansion of the scope of support provided to technical specialists. Now at your service is a library of network elements (stencils), made in Microsoft Visio format and containing schematic images of almost the entire range of equipment manufactured by the company - from carrier-class devices, IP DSLAM and Ethernet switches, to Internet centers, DSL and analog modems and even some discontinued products. In total, the set includes more than 100 templates, combined into 13 groups corresponding to different types of users and telecom operators working with the company's products will be able to use the ZyXEL library of network elements for the Microsoft Visio package when documenting networks….

Where to get vvs files ?

Zyxel_Judy

Hi @Denis2025 ,

We currently only provide product icons in PNG format.

Could you share the link to the article you mentioned so we can help to verify the accuracy of the information?

Denis2025

https://community.zyxel.com/en/discussion/comment/78322#Comment_78322

https://datastream.by/blog/novosti-kompanii/zyxel-uproshchaet-sozdanie-skhem-setey-novaya-biblioteka-setevykh-elementov-v-microsoft-visio/?ysclid=mc4flqrvi5333157897

Zyxel_Judy

Hi @Denis2025

We currently only provide product icons in PNG format.

The information you provided is not from the Zyxel official website, nor from the unit we cooperate with. By the way, the image in the link you shared only shows the product icon in PNG format, not as a VSS file.
To obtain accurate information about Zyxel products, we recommend using:
Zyxel official website
Zyxel download library
