[XMG1915] rx/tx issue between client and up-link

joelabero

Issue:
*Cannot ping from any direction client ←→pfsense.*no automatic ip from my pfsense dhcp.

steps:

*factory restored switch
*changed its static ip (192.168.0.11)
*turned of that cloud thingy
*used the vlan helper tool:

(port16 is up-link pfSense connected)

On port 10, i have some eth dongle confed as follows:

Ethernet adapter Ethernet 2:
Connection-specific DNS Suffix  . :
Description . . . . . . . . . . . : Realtek USB GbE Family Controller
Physical Address. . . . . . . . . : 00-E0-4C-68-DC-BB
DHCP Enabled. . . . . . . . . . . : No
Autoconfiguration Enabled . . . . : Yes
Link-local IPv6 Address . . . . . : fe80::cd81:501c:46e4:63f8%56(Preferred)
IPv4 Address. . . . . . . . . . . : 192.168.40.40(Preferred)
Subnet Mask . . . . . . . . . . . : 255.255.255.0
Default Gateway . . . . . . . . . :
DHCPv6 IAID . . . . . . . . . . . : 939581516
DHCPv6 Client DUID. . . . . . . . : 00-01-00-01-2B-D0-F7-39-C8-7F-54-67-F6-3F
DNS Servers . . . . . . . . . . . : fec0:0:0:ffff::1%1
fec0:0:0:ffff::2%1
fec0:0:0:ffff::3%1
NetBIOS over Tcpip. . . . . . . . : Enabled

(my enabled dhcp server on pfsense has not worked so this is a static ipv4)

Here's the network interfaces of my pfsense (2.7.2-RELEASE):
```

em0: flags=1008843<UP,BROADCAST,RUNNING,SIMPLEX,MULTICAST,LOWER_UP> metric 0 mtu 1500options=48120bb<RXCSUM,TXCSUM,VLAN_MTU,VLAN_HWTAGGING,JUMBO_MTU,VLAN_HWCSUM,WOL_MAGIC,VLAN_HWFILTER,HWSTATS,MEXTPG>ether 52:54:00:12:34:56inet6 fe80::5054:ff:fe12:3456%em0 prefixlen 64 scopeid 0x1media: Ethernet autoselect (1000baseT <full-duplex>)status: activend6 options=21<PERFORMNUD,AUTO_LINKLOCAL>igc0: flags=1008843<UP,BROADCAST,RUNNING,SIMPLEX,MULTICAST,LOWER_UP> metric 0 mtu 1500description: WANoptions=4e000bb<RXCSUM,TXCSUM,VLAN_MTU,VLAN_HWTAGGING,JUMBO_MTU,VLAN_HWCSUM,RXCSUM_IPV6,TXCSUM_IPV6,HWSTATS,MEXTPG>ether 00:d0:b4:03:34:31inet 79.136.47.45 netmask 0xffffffc0 broadcast 79.136.47.63inet6 fe80::2d0:b4ff:fe03:3431%igc0 prefixlen 64 scopeid 0x2media: Ethernet autoselect (1000baseT <full-duplex>)status: activend6 options=23<PERFORMNUD,ACCEPT_RTADV,AUTO_LINKLOCAL>igc1: flags=1008843<UP,BROADCAST,RUNNING,SIMPLEX,MULTICAST,LOWER_UP> metric 0 mtu 1500description: LANoptions=4e000bb<RXCSUM,TXCSUM,VLAN_MTU,VLAN_HWTAGGING,JUMBO_MTU,VLAN_HWCSUM,RXCSUM_IPV6,TXCSUM_IPV6,HWSTATS,MEXTPG>ether 00:d0:b4:03:34:32inet 192.168.0.1 netmask 0xffffff00 broadcast 192.168.0.255inet6 fe80::2d0:b4ff:fe03:3432%igc1 prefixlen 64 scopeid 0x3media: Ethernet autoselect (2500Base-T <full-duplex>)status: activend6 options=21<PERFORMNUD,AUTO_LINKLOCAL>enc0: flags=0 metric 0 mtu 1536options=0groups: encnd6 options=21<PERFORMNUD,AUTO_LINKLOCAL>lo0: flags=1008049<UP,LOOPBACK,RUNNING,MULTICAST,LOWER_UP> metric 0 mtu 16384options=680003<RXCSUM,TXCSUM,LINKSTATE,RXCSUM_IPV6,TXCSUM_IPV6>inet 127.0.0.1 netmask 0x0inet6 ::1 prefixlen 128inet6 fe80::1%lo0 prefixlen 64 scopeid 0x5groups: lond6 options=21<PERFORMNUD,AUTO_LINKLOCAL>pflog0: flags=100<PROMISC> metric 0 mtu 33152options=0groups: pflogpfsync0: flags=0 metric 0 mtu 1500options=0maxupd: 128 defer: off version: 1400syncok: 1groups: pfsyncem0.10: flags=1008843<UP,BROADCAST,RUNNING,SIMPLEX,MULTICAST,LOWER_UP> metric 0 mtu 1500description: VL10_MGMToptions=4000003<RXCSUM,TXCSUM,MEXTPG>ether 52:54:00:12:34:56inet 192.168.10.1 netmask 0xffffff00 broadcast 192.168.10.255inet6 fe80::5054:ff:fe12:3456%em0.10 prefixlen 64 scopeid 0x8groups: vlanvlan: 10 vlanproto: 802.1q vlanpcp: 0 parent interface: em0media: Ethernet autoselect (1000baseT <full-duplex>)status: activend6 options=21<PERFORMNUD,AUTO_LINKLOCAL>em0.20: flags=1008843<UP,BROADCAST,RUNNING,SIMPLEX,MULTICAST,LOWER_UP> metric 0 mtu 1500description: VL20_VPNoptions=4000003<RXCSUM,TXCSUM,MEXTPG>ether 52:54:00:12:34:56inet 192.168.20.1 netmask 0xffffff00 broadcast 192.168.20.255inet6 fe80::5054:ff:fe12:3456%em0.20 prefixlen 64 scopeid 0x9groups: vlanvlan: 20 vlanproto: 802.1q vlanpcp: 0 parent interface: em0media: Ethernet autoselect (1000baseT <full-duplex>)status: activend6 options=21<PERFORMNUD,AUTO_LINKLOCAL>em0.40: flags=1008843<UP,BROADCAST,RUNNING,SIMPLEX,MULTICAST,LOWER_UP> metric 0 mtu 1500description: VL40_GUESToptions=4000003<RXCSUM,TXCSUM,MEXTPG>ether 52:54:00:12:34:56inet 192.168.40.1 netmask 0xffffff00 broadcast 192.168.40.255inet6 fe80::5054:ff:fe12:3456%em0.40 prefixlen 64 scopeid 0xagroups: vlanvlan: 40 vlanproto: 802.1q vlanpcp: 0 parent interface: em0media: Ethernet autoselect (1000baseT <full-duplex>)status: activend6 options=21<PERFORMNUD,AUTO_LINKLOCAL>ovpnc1: flags=1008043<UP,BROADCAST,RUNNING,MULTICAST,LOWER_UP> metric 0 mtu 1500options=80000<LINKSTATE>inet 10.21.226.189 netmask 0xffffff00 broadcast 10.21.226.255inet6 fe80::2d0:b4ff:fe03:3431%ovpnc1 prefixlen 64 scopeid 0xbgroups: tun openvpnnd6 options=21<PERFORMNUD,AUTO_LINKLOCAL>Opened by PID 31338

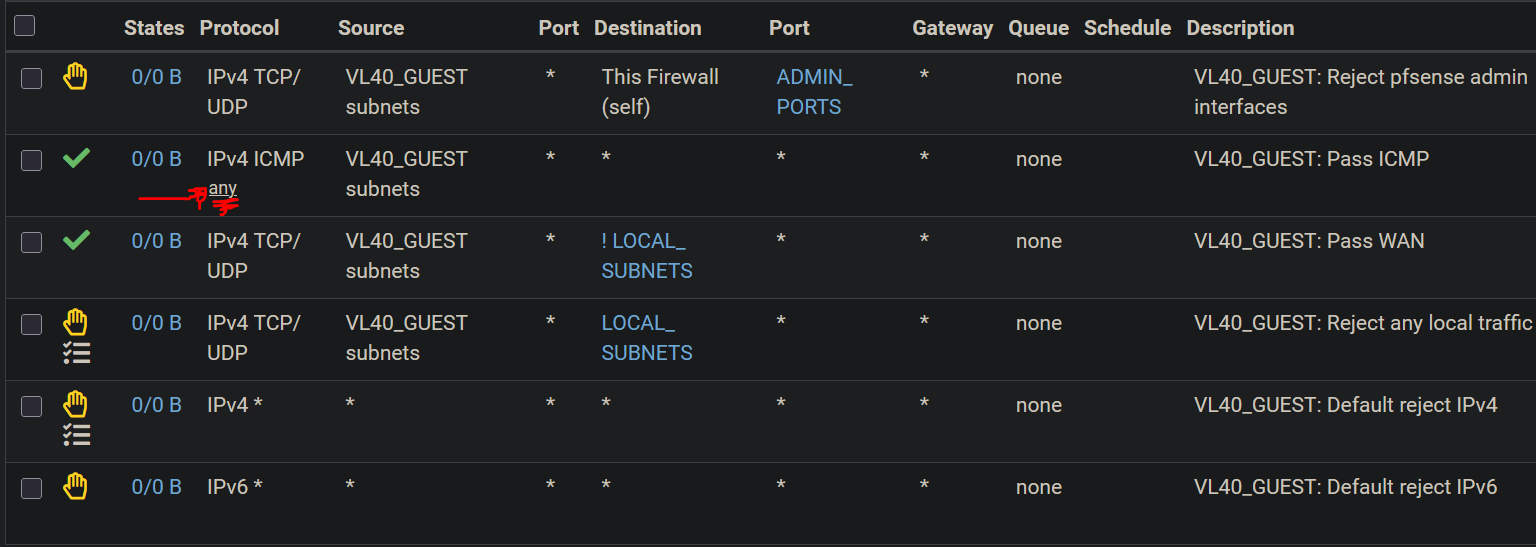

My firewall rules for this vlan:

(subnets = 192.168.40.1 - 192.168.40.254)

I have a few network-knowledable friends but i commonly get replies like "rtfm", what ever that means.

I don't think this switch has any packet monitoring feature, but with my lacking skills i don't know how i can debug this.

Any input appriciated,
Joe
