USG Flex H device - Backup/Restore configuration between device

Maverick87

Hello everyone,
I have an USG Flex 100H and also an USG Flex 200HP.

It's possible to pass all the configuration from the 100H to 200HP? It's possible to backup the 100H configuration and restore it - as is - to 200HP?

Thank you

PeterUK

Not really the the 100H has a different port layout to 200HP but what I did when with 200H to use else where in my network to 700H is you can copy parts of the config over like address or service objects into the 700H config file.

Maverick87

OK but all the Policy Control, Static DHCP configuration, static route, objects and so on?
OK for the different port layout, but the other things is only configuration.

OK, you cannot replicate the Interface configuration, but all other things that run on it?
I configure the new Iface configuration, and then restore the Policy Control, Static DHCP and so on based on the newest Iface config (obviously if the Iface naming is the same).

PeterUK

You might might but able to just change the config header from:

model: USG FLEX 100H

to

model: USG FLEX 200HP

and see if it works

but you might also need to copy from FLEX200HP the admin password to 100H config to then apply to FLEX200HP.

Maverick87

How I change the model into the config header?

Sure that the first setup of the 200HP is done in it's original config, then I try to apply the config.

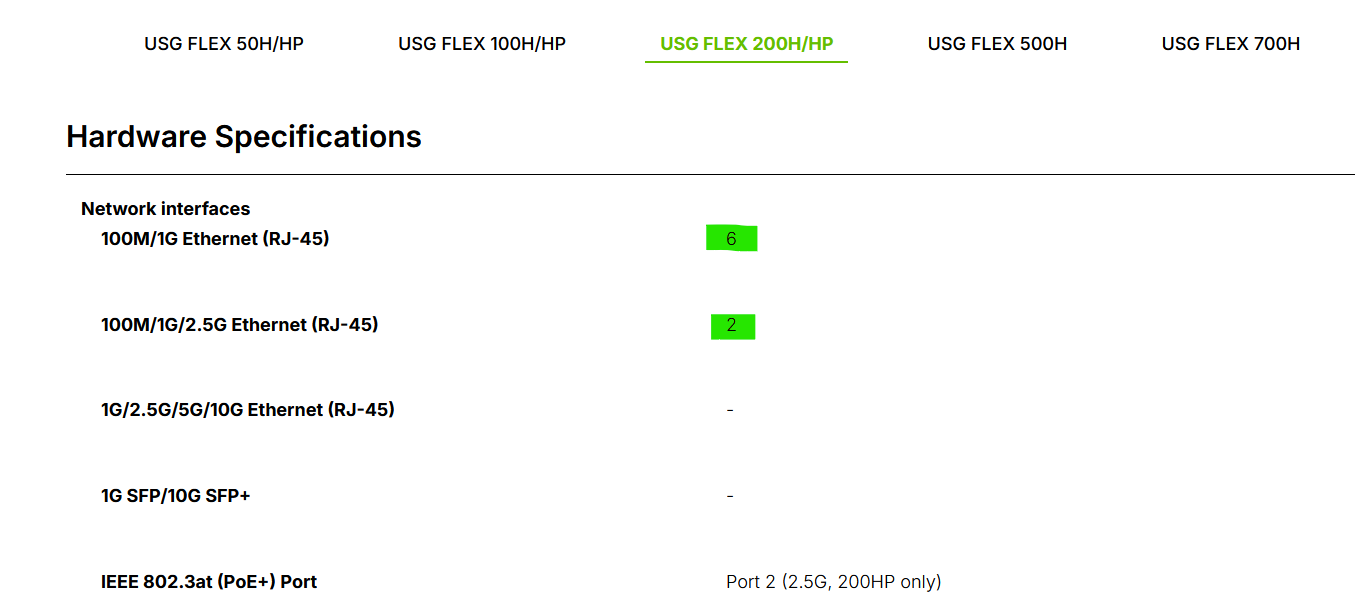

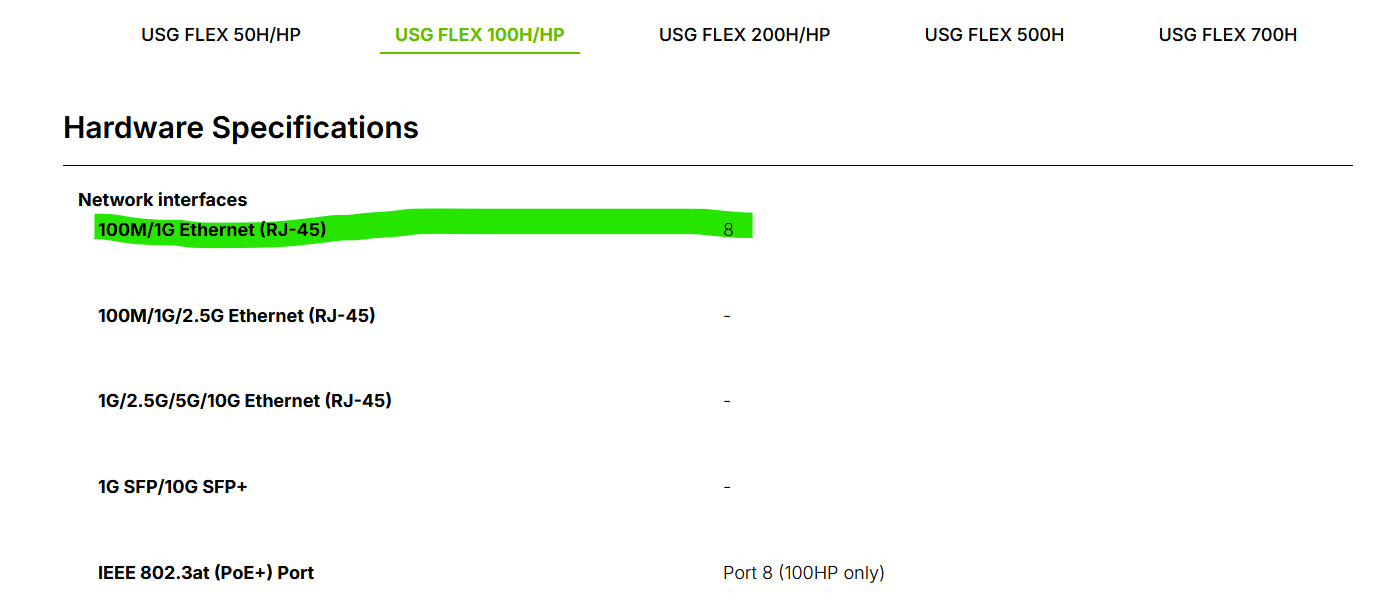

Anyway, the number of port are the same, the only difference between both is the Multi-gig LAN/PoE+ on 200HP (2x2.5Gbit + 6x1Gbit for the 200, 8x1Gbit for the 100)

So the layout seems the same

PeterUK

open up the config file in notepad it be up the top
