Hello everyone,

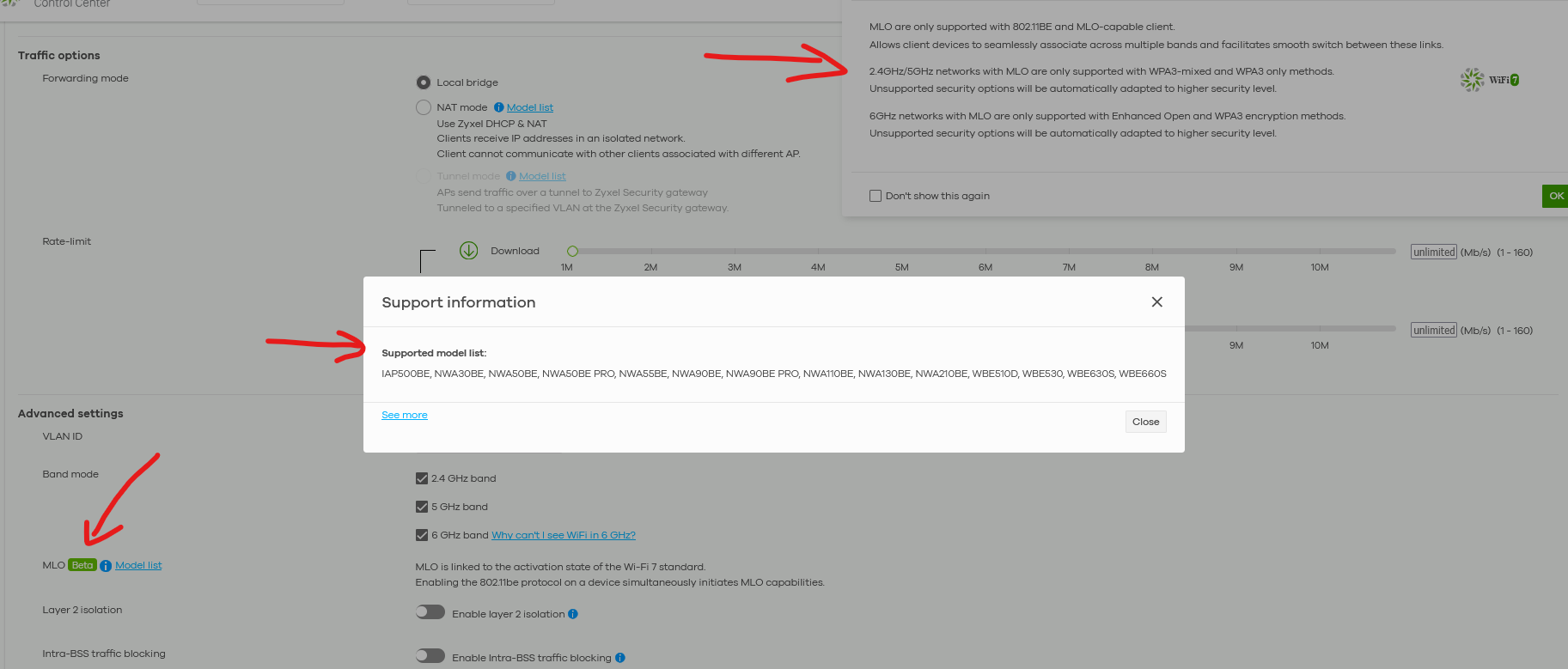

I updated several H series FWs to latest firmware but I cannot see MLO options for WiFi managed:


Where can I find it to use all the hardware options of the APs installed on Clients' sites?

All Replies

  • Zyxel_Melen
    Zyxel_Melen Posts: 3,894 image  Guru Member
    Zyxel Certified Network Engineer Level 1 - Switch Zyxel Certified Network Administrator - Switch Zyxel Certified Network Administrator - Nebula Zyxel Certified Sales Associate

    Hi @GiuseppeR

    Since the WiFi 7 enforces new MLO change, the MLO option is not available on the configuration page, and enables by default. For more details, please reference this FAQ:

    Heads-Up: Latest WiFi 7 enforces new MLO change, Zyxel implement in 7.20! — Zyxel Community

    Zyxel Melen


  • GiuseppeR
    GiuseppeR Posts: 497 image  Master Member
    Zyxel Certified Network Engineer Level 1 - Switch Zyxel Certified Network Engineer Level 1 - Nebula First Comment Friend Collector
    edited 1:52PM

    Hi @Zyxel_Melen

    thanks for that link, I missed it.

    So this is the reason why there is this change also on Nebula?

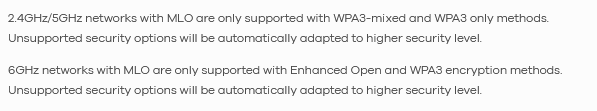

    So following this detail:

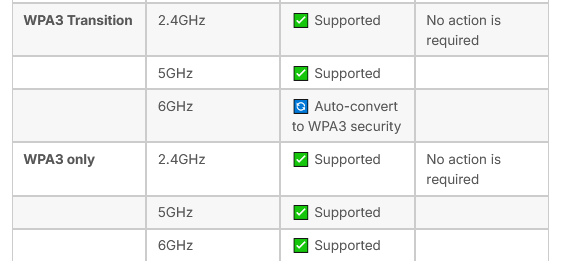

    And this detail:

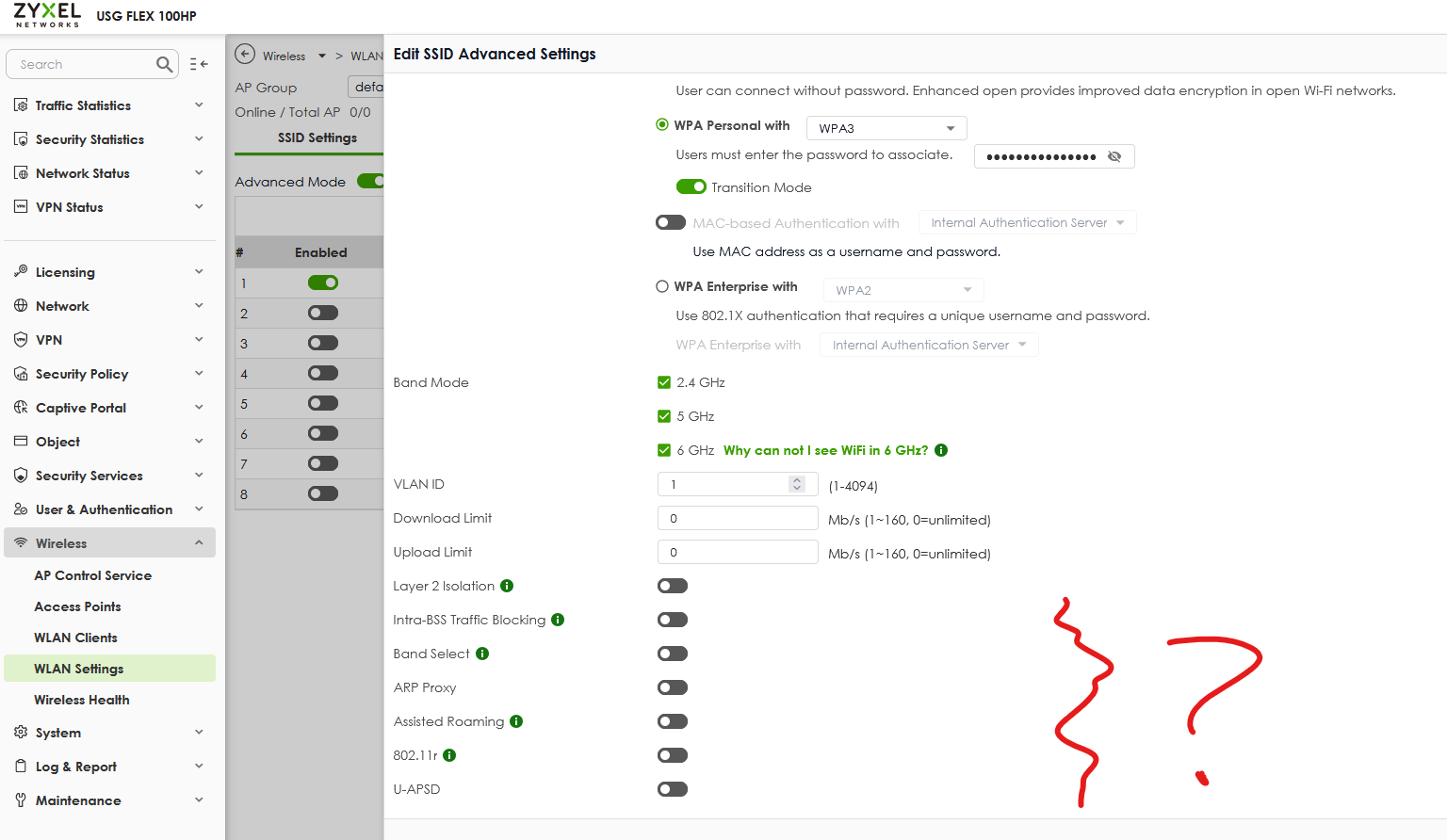

    When you set a new SSID:

    • Old WiFi devices goes only to 2.4/5 GHz via "WPA2" when "WPA3 Transition Mode" is activated
    • MLO is enabled on 2.4/5 GHz when you select at least "WPA3 Transition Mode"
    • MLO is enabled on 6 GHz when you select natively "WPA3" OR it autoconverts to "WPA3" when you have selected "WPA3 Transition Mode"

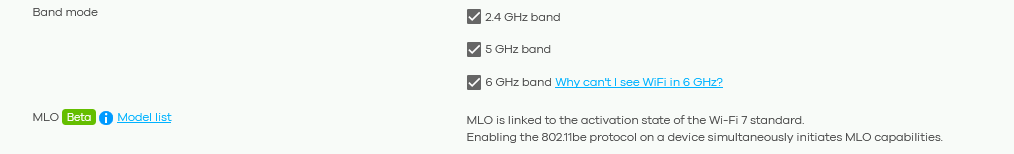

    So selecting this:

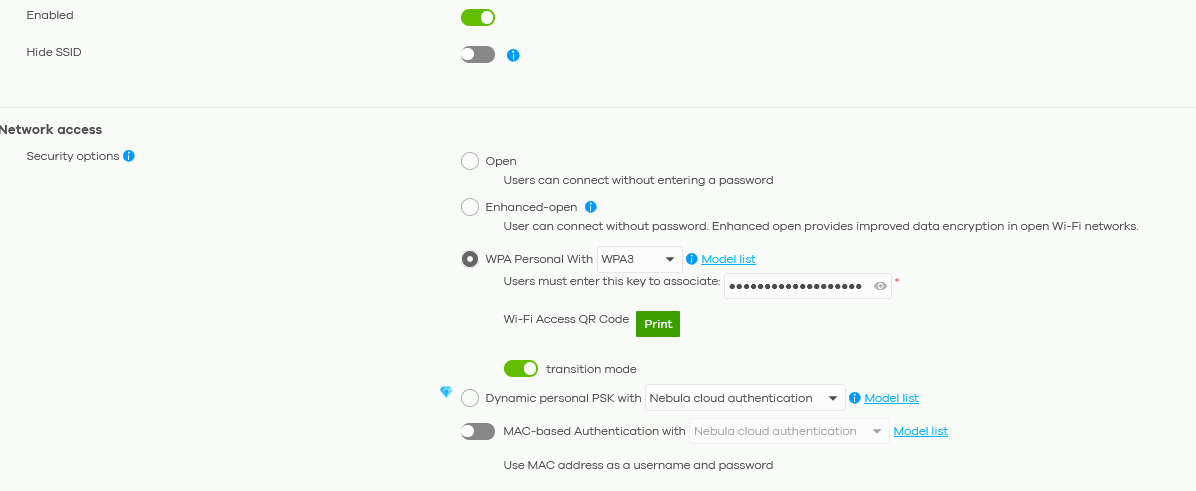

    And this:


    Is the way to use MLO on 2.4 + 5 + 6 GHz…. Am I correct?
