USG LITE 60AX Enhancements - Dual WAN Support

The USG Lite 60AX now supports Dual WAN for improved connectivity and reliability.

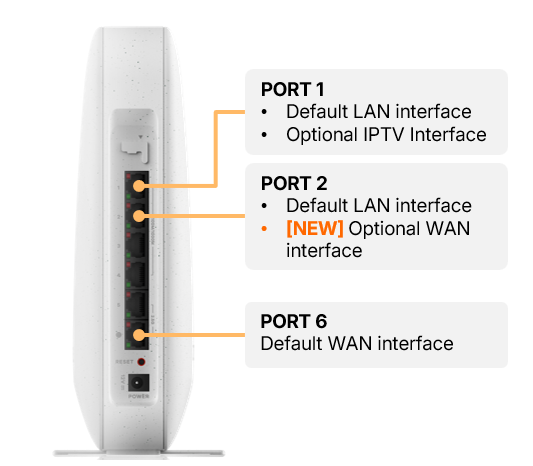

Port Configuration

  • Primary WAN: Port 6 (Internet icon) remains the default WAN interface.
  • Secondary WAN: Port 2 can now be configured as a secondary WAN interface.

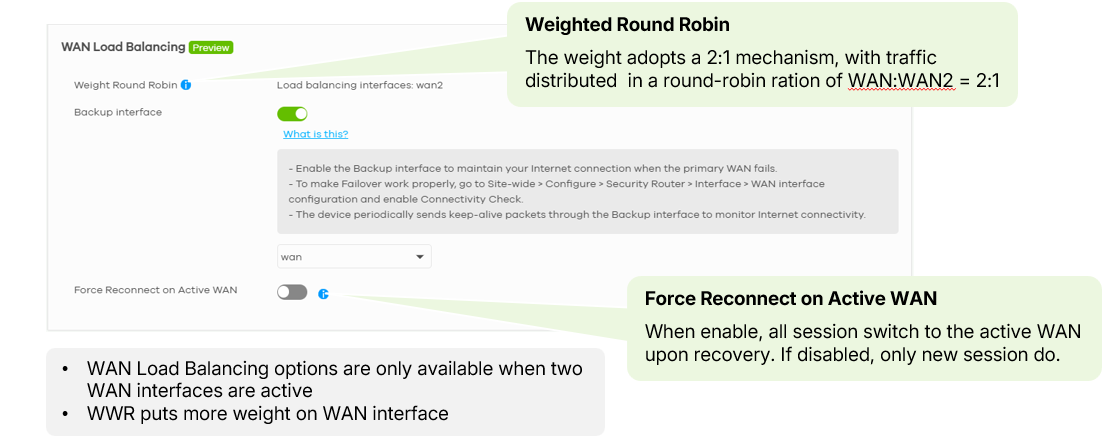

Traffic Management

  • Load Balancing: Uses a Weighted Round Robin algorithm with a fixed 2:1 ratio favoring the primary WAN.
  • Failover Mode: Supports Active-Passive failover. The "Force reconnect on active WAN" option terminates sessions on the backup link once the primary link recovers.

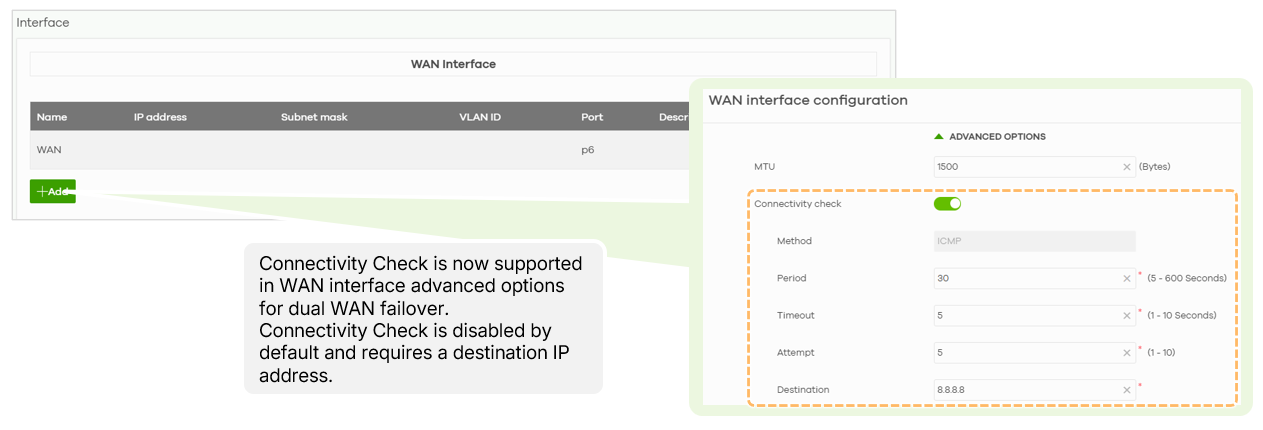

  • Connectivity Check: Uses ICMP to monitor WAN health and trigger failover.
