[USG Flex H] - SNMP WAN IN/OUT octet wrong values

Maverick87

Hello everyone,
I've the USG Flex 200HP and if I try to query the WAN octet OID, obtain the wrong value.

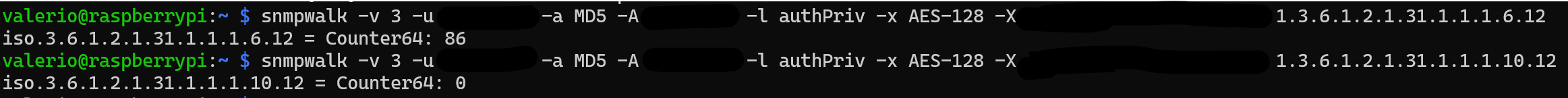

The OID that I query is: 1.3.6.1.2.1.31.1.1.1.6.12 for WAN Incoming and 1.3.6.1.2.1.31.1.1.1.10.12 for WAN Outcoming.

Is this the right OID to query? My firewall is up&running from more that 14 hours.

Thank you

Maverick87

I found the problem... these OIDs were being used by the PPPoE_WAN connection before I configured a Tailscale VPN.

After configuring the VPN, the WAN OIDs changed, replacing the VPN (the OIDs used were therefore associated with the VPN instead of remaining associated with the WAN).

This shouldn't happen; it's not possible to configure new parameters, sections, and features and have the OIDs used moved.

Is this the case with you?
Also, if I were to create new VPNs in the future, would I find myself with the OIDs moved again?

Thank you

Maverick87

@Zyxel_Melen, @Zyxel_Tina

Do you have any news about this problem? Can you open a case to the developer to not move the OIDs when I create new objects?

Zyxel_Tina

Hi @Maverick87,

Thank you for reaching out and providing the details.

I have forwarded this issue to the relevant team and will keep you informed of any updates as soon as they become available.

We appreciate your cooperation and patience.

Zyxel_Tina

Hi @Maverick87,

After checking, we confirm it is a bug and will be fixed in the future.
