Advanced Networking with CX3800 and GS1915 v2 Switch Series

Zyxel_Lynn · August 13

Zyxel Switch Series: Performance and Versatility

The latest switch releases focus on enterprise-grade network and SMB flexibility.

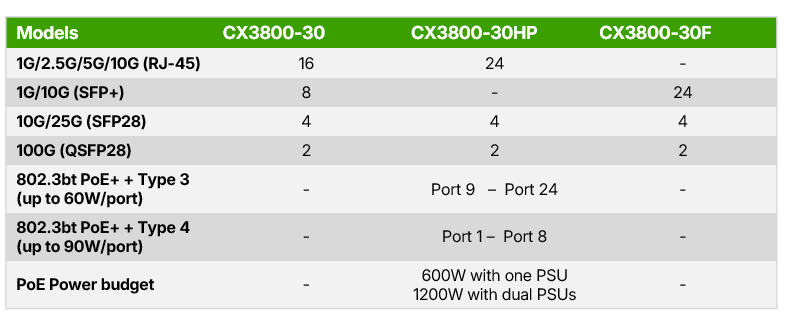

Designed for high-demand networks, the CX3800 series offers:

100G Uplinks: High-speed connectivity for core aggregation.
Ultra PoE: Port 1 to 8 can provide up to 90W (802.3bt Type 4), while other ports support 60W.
Multi-Gigabit Support: Ports support 1G, 2.5G, 5G, and 10G speeds.
Power Redundancy: Supports dual power source units, increasing the PoE budget to 1200W.

The GS1915 v2 series provides flexible management via standalone or cloud modes. Highlights include:

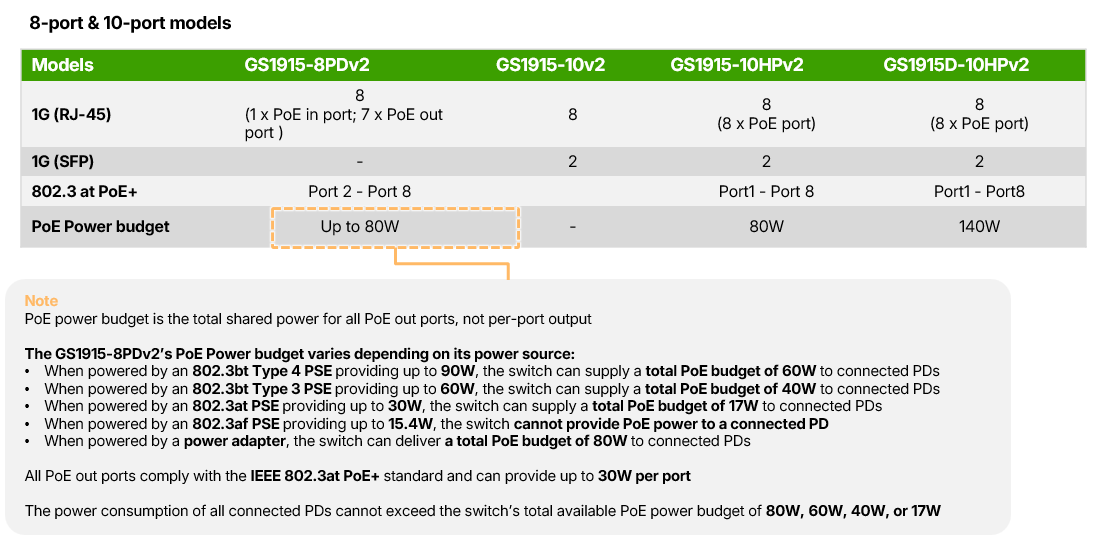

GS1915-8PDv2 (PoE-in Model): Features a unique PoE-in port (Port 1) that can power the switch itself. The remaining ports provide PoE-out.
Power Supply Priority: If both DC power and PoE-in are connected, the DC adapter takes priority, providing the full 80W budget.
GS1915D-10HPV2: A specialized DIN rail model for industrial or space-constrained deployments.

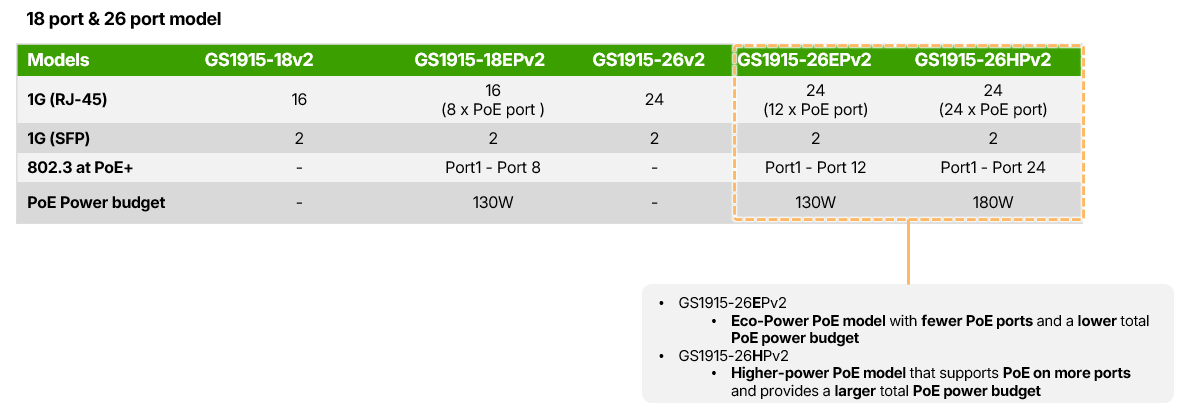

Flexible PoE Budgets: Available in "Eco-Power" (EP) and "Higher-Power" (HP) versions to match specific device requirements.
