Policy control rule not allowing traffic when it should

PeterUK

USG FLEX 200H V1.39(ABWV.0)

this might have been fix in the ITS-26WK32-m12287 for FLEX 700H but don't have this fireware for FLEX 200H

So I have this excellent app call Input Director and it works the way it does but I add NAT and routeing rules for the traffic.

So the setup is
ge4 zone LAN 192.168.255.243/26 P4
VLAN47 zone VLAN47 192.168.255.39/28 (Static) 47 VLAN p8,p6

PC at 192.168.255.250 on LAN Input Director target 192.168.255.243 port 31234
test PC at 192.168.255.44 on VLAN47

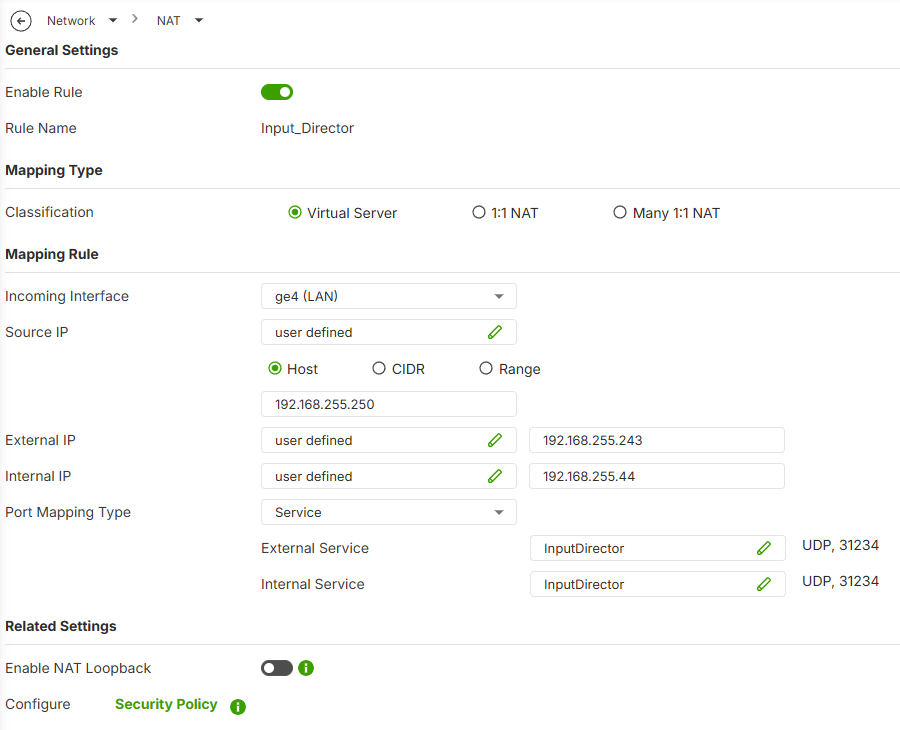

NAT rule
incoming ge4 LAN
Source IP 192.168.255.250
External IP 192.168.255.243
Port Mapping Type Input Director 31234

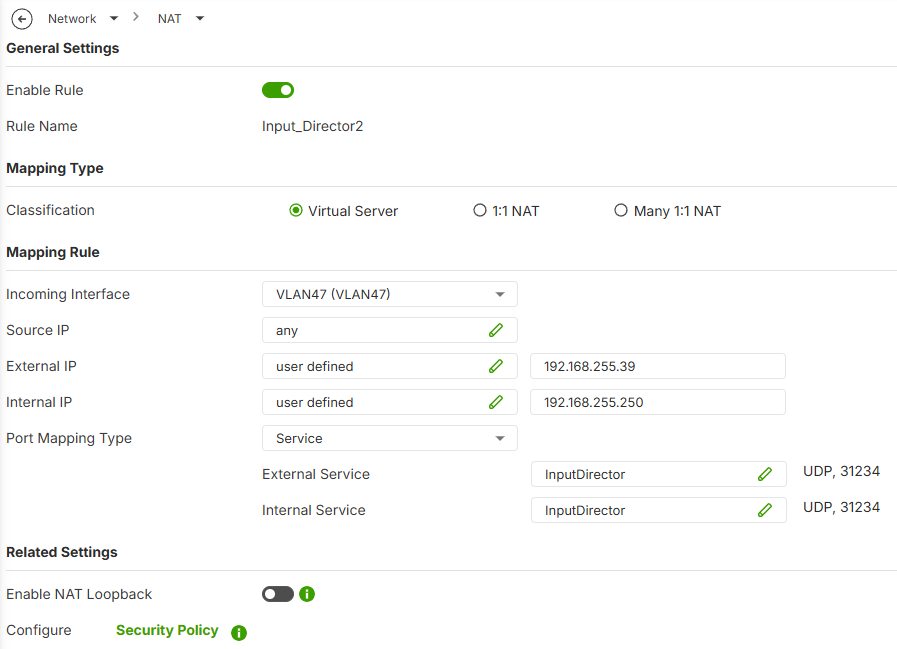

NAT rule
incoming VLAN47
Source IP any
External IP 192.168.255.39
Port Mapping Type Input Director 31234

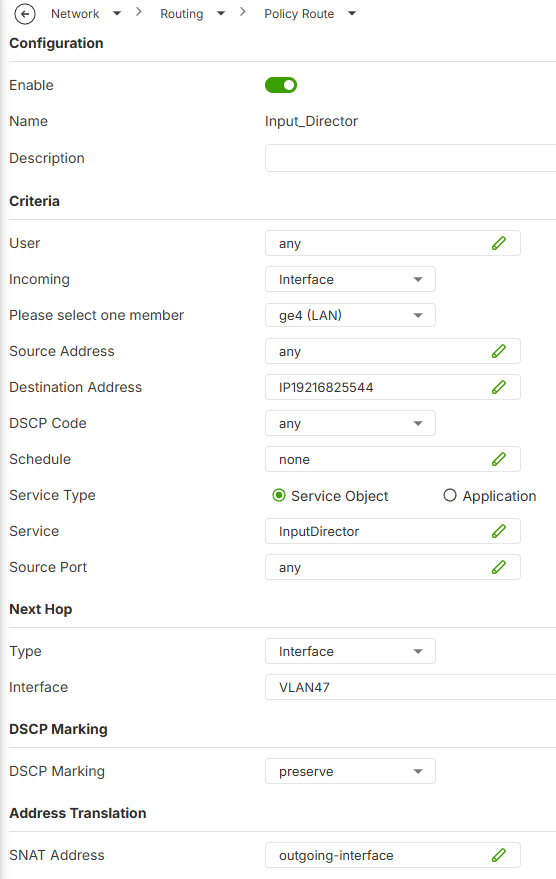

routing routing rule
incoming ge4 LAN
Destination Address 192.168.255.44
Service Input Director 31234
next hop VLAN47
SNAT Address outgoing-interface

Policy control
From LAN
To VLAN47
Service Input Director 31234

From VLAN47
To LAN
Service Input Director 31234

and for some reason did not work which I know it did back on V1.38
so changed
From LAN
To any
Service Input Director 31234
now it works

Zyxel_Melen

Hi @PeterUK

What's each of your NAT rule's Internal IP? I didn't see this option which cause I can't replicate this case. Please help to share it, thanks.

PeterUK

Hi Melen

Yes forgot to add the Internal IP here are some screenshots of them rules but the real problem is Policy control where you can't set it to the to zone and this all worked fine on V1.38 but think it might be fixed in ITS-26WK32-m12287 because I have that for FLEX 700H but not that firmware for FLEX 200H

Zyxel_Melen

Hi @PeterUK

Thanks. I used the latest weekly with your configuration to test, and it is work.

Policy control
From LAN
To VLAN47
Service Input Director 31234

From VLAN47
To LAN
Service Input Director 31234

Let me send you the latest weekly.

PeterUK

This is most troubling just installed latest weekly firmware for FLEX 200H and the issue remains.

Let me test back to V1.38 and I update

update bit of a problem going back to V1.38 with the current config I try a older config..also needed to do a reset…

…this is just strange even on V1.38(ABWV.0)ITS-26WK16-m11228 with a old config from ‎03 ‎July ‎2026 and it has

Policy control
From LAN
To VLAN47
Service Input Director 31234

From VLAN47
To LAN
Service Input Director 31234

it does not work…but it must of at some point!

let me know if you need a test PC to view the issue

could a nebula update cause this? I can't see how…it seems like for the given model 200H the 700H has similar config and is fine?

so needed to go back to V1.38 for more testing on the BIG BAD Throughput issue

PeterUK

Well..I found the cause its really odd how it works with to zone any

so doing testing I did at some point I needed to use VLAN47 but not on FLEX 200H so I just disabled the VLAN47 thinking I would remember what I done so I have a site to site VPN that was enabled but not connected with Policy local 0.0.0.0 and remote…. 192.168.255.32/28 and that was the issue
