GS1920v2 series VLAN setup GUI - confusing

rustywheelus

Pretty weak on VLANs in general, but I manage to get them setup for guest wifi applications. Have a new GS1920-48HPv2, and confused by the VLAN setup in the GUI: all I see is a 50x50 grid. I get that I can pick egress ports on one axis, and ingress on the other, but nowhere does it show or allow selection of the VLAN ID it will apply to? Am I in the wrong place, or is there somewhere to change the format to the lists of ports and settings I'm used to seeing? Thank you.

Zyxel_Melen

Hi @rustywheelus

No, this is port-based VLAN. To having 802.1Q(VLAN ID), you need to change your switch system setting.

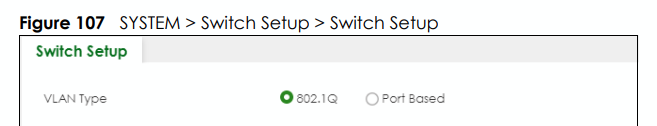

Please navigate to SYSTEM > Switch Setup > Switch Setup to change the VLAN type.

Additionally, here is an FAQ for 802.1Q VLAN setup:

Tutorial of Switch VLAN Configuration (V4.80 and newer) — Zyxel Community
