Problem to connect ftp with 1990 port - USG Flex 100

Gru_Ma

Hello

i'm try to connect an ftp server with port 1990 but not works. It works with statandard port and works if i connect form other lan not connect to firewall

I not set any limitations form lan to wan

Thanks

Zyxel_James

Could you please clarify your scenario in more detail? please also explain your network topology, thanks.
So it works with port 21 when the traffic is not passing through firewall. then why you want to access by port 1990 to a FTP server?

Gru_Ma

Hello

Thanks for your reply.

If i try to access  with port 21 when the traffic is passing through firewall it works

If i try to access  with port 1990 when the traffic is passing through firewall it not works

If i try to access  with port 1990 when the traffic is not passing through firewall it works

Thanks

PeterUK

Does the FTP server support both Active and Passive?

If Passive only you will need to allow outgoing for TCP ports other then 1990 or allow rule for the IP of server

If Active only you will need to allow incoming for TCP ports or allow rule for the IP of server

with port 21 ALG takes care of FTP

Gru_Ma

Hello

i had set a new policy

But not works

Thanks

Gru_Ma

I'm try to connect from my lan to external ftp server

PeterUK

Due to how FTP works in Passive mode you have the control port 1990 and a range of DATA ports all of which is outgoing LAN to WAN

In FTP Active mode you have the control port 1990 which is outgoing and DATA port incoming WAN to LAN.

Try with a IP or FQDN

PeterUK

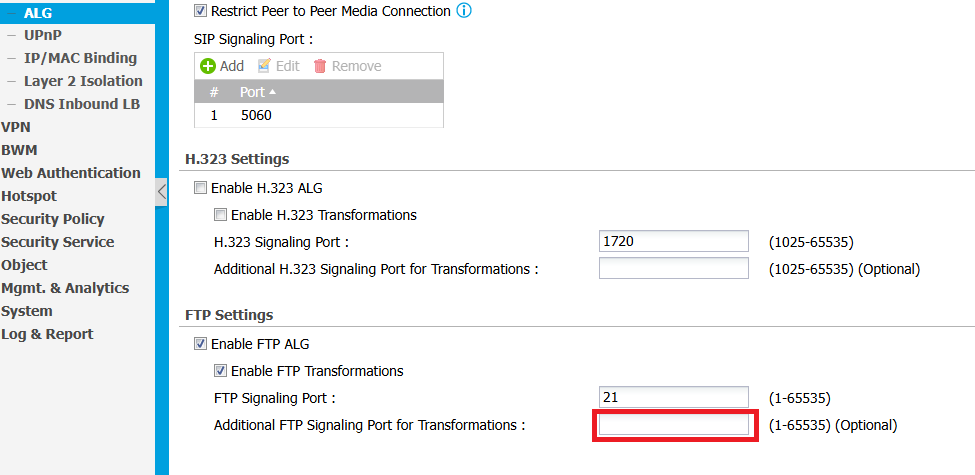

Not tried it but if you put 1990 in additional FTP signaling port that should work

Gru_Ma

https://community.zyxel.com/en/discussion/comment/77530#Comment_77530

Hello

i have already tryed but not works. Thanks

Zyxel_James

I also would like to know the FTP mode is active or passive, and what's the data port and command port.
Or you can simply have a test to determine if the security policies are the reason the FTP access get blocked, that is, disable Policy Control.
Moreover, Is your USG FLEX 100 behind NAT?
