WAN Trunk for backup option?

Options
GiuseppeR
GiuseppeR Posts: 430  Master Member
Zyxel Certified Network Engineer Level 1 - Switch Zyxel Certified Network Engineer Level 1 - Nebula First Comment Friend Collector
edited June 12 in USG FLEX H Series

Hello everyone,

I went on the webUI with 1.32 version and I see this:


and when I try to select the desired trunk I see these options:


I cannot see where I can say to the firewall that a specific WAN is only for backup.

For example you have WAN1, WAN2, WAN3.

WAN3 has a limited amount of GBs for the internet traffic so I need to make a trunk for WAN1+WAN2 and I have to tell the firewall to use WAN3 only when WAN1+WAN2 is down.

Spillover is not a backup option.

All Replies

  • Fred_77
    Fred_77 Posts: 136  Ally Member
    5 Answers First Comment Friend Collector Fourth Anniversary

    Hi @GiuseppeR

    i have a similrar scenario: added wan1-wan2 mode active and wan3 as passive.

    In my case it works .

    Best regards

    Lorenzo

  • GiuseppeR
    GiuseppeR Posts: 430  Master Member
    Zyxel Certified Network Engineer Level 1 - Switch Zyxel Certified Network Engineer Level 1 - Nebula First Comment Friend Collector

    Hello @Fred_77

    is it possible to schedule also a WAN4 as backup of WAN3 with your scheme?

    Do you set that scheme on prem?

    Thanks in advance, best regards

    Giuseppe

  • Fred_77
    Fred_77 Posts: 136  Ally Member
    5 Answers First Comment Friend Collector Fourth Anniversary

    Hi @GiuseppeR

    Honestly I have never tried with 4 WANs, but by choosing the right usage scheme I assume it is possible. So WAN1 and WAN2 as active, WAN3 and WAN4 as passive. WAN4 should be invoked when WAN3 is down.

    I made my config on prem.

    Regards

    Lorenzo

  • PeterUK
    PeterUK Posts: 3,891  Guru Member
    100 Answers 2500 Comments Friend Collector Seventh Anniversary
    edited June 16

    Or you can setup routeing rules with Connectivity Check

  • Zyxel_Melen
    Zyxel_Melen Posts: 3,529  Zyxel Employee
    Zyxel Certified Network Engineer Level 1 - Switch Zyxel Certified Network Administrator - Switch Zyxel Certified Network Administrator - Nebula Zyxel Certified Sales Associate

    Hi @GiuseppeR @Fred_77,

    Trunk only support 1 passive in the trunk profile. May I know the scenario that need to use 2 WAN interface as passive role?

    Zyxel Melen


  • GiuseppeR
    GiuseppeR Posts: 430  Master Member
    Zyxel Certified Network Engineer Level 1 - Switch Zyxel Certified Network Engineer Level 1 - Nebula First Comment Friend Collector

    Hello @Zyxel_Melen

    for example:

    WAN1 is a FTTH

    WAN2 is a FTTH from different ISP

    WAN3 is a PPPoE via radio bridge

    WAN4 is a 5G antenna with slow speed and only few gigs of traffic.

    So WAN1 + WAN2 should go together, for example in WRR (routing needed only if some local IPs have to go on the internet with specific public IP and open ports)

    WAN 3 is the main backup if the trunk WAN1 + WAN2 goes down.

    If WAN3 is down too (radio bridge are stations linked to earth fiber, you could have disruptions made by floods) you have WAN4 to let some services survive using few gigs available.

  • PeterUK
    PeterUK Posts: 3,891  Guru Member
    100 Answers 2500 Comments Friend Collector Seventh Anniversary

    Do the following

    use Default Trunk

    Make trunk WAN1 and WAN2

    on Interfaces WAN1 and WAN2 Enable Connectivity Check to some where

    make the following routing rules in order
    1st
    incoming any
    next hop trunk with WAN1 and WAN2

    2nd
    incoming any
    next hop WAN3
    Enable Connectivity Check to some where

    3rd
    incoming any
    next hop WAN4

    I have not tested this but what I think should happen is WAN1 and WAN2 will be use if their Connectivity Check fails WAN3 will be used if WAN3 fails also WAN4 will be used until Connectivity Check is up on WAN1,2 or 3

  • PeterUK
    PeterUK Posts: 3,891  Guru Member
    100 Answers 2500 Comments Friend Collector Seventh Anniversary
    edited June 18

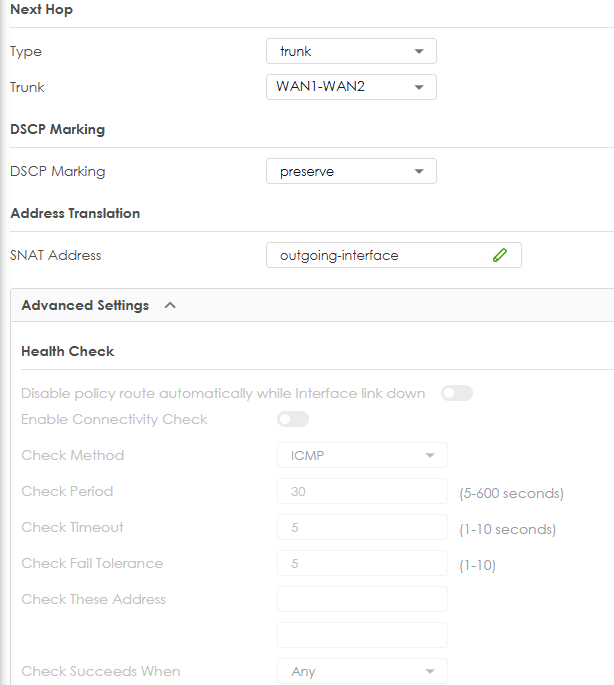

    So did some testing here and my way will not work due to routeing override the interface ping check

    so either a change where by interface ping check override routing rule to fail it or when selecting next hop trunk ping check can be enabled and ping out interface listed in the selected trunk so that the routing rule fails to the next.

    Screenshot 2025-06-18 142926.png
  • Zyxel_Melen
    Zyxel_Melen Posts: 3,529  Zyxel Employee
    Zyxel Certified Network Engineer Level 1 - Switch Zyxel Certified Network Administrator - Switch Zyxel Certified Network Administrator - Nebula Zyxel Certified Sales Associate

    So WAN4 is the backup's backup. We will have a discussion and I will update you once I get further information.

    Zyxel Melen
