WAN and VLANS

Gel

Hey everyone, how are you? I need some more help. Look, I have two WANs, WAN1 and WAN2, and I also have two VLANs, VLAN40 and VLAN50. VLAN40 goes through WAN1, and VLAN50 goes through WAN2. I'd like to create a rule that when WAN1 goes down, VLAN40 automatically switches to WAN2, and when it comes back up, VLAN40 returns to WAN1. How could I do this?

PeterUK

the status goes red when ping fail going to the next rule 2 and when ping is back up rule 1 takes over again

Gel

@PeterUK

Thank you very much, it worked. Now I will do this for other VLANs as well.

PeterUK

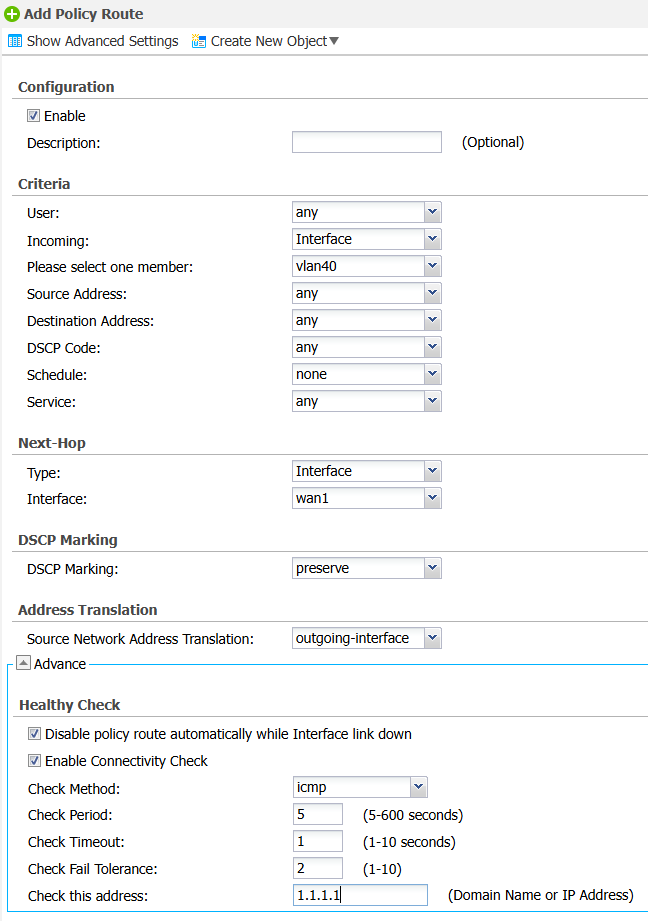

The way it can be done is routing rules with ping check

so in order
rule 1
incoming VLAN40
next hop WAN1
ping check to some reliable IP that routed some hops a away.

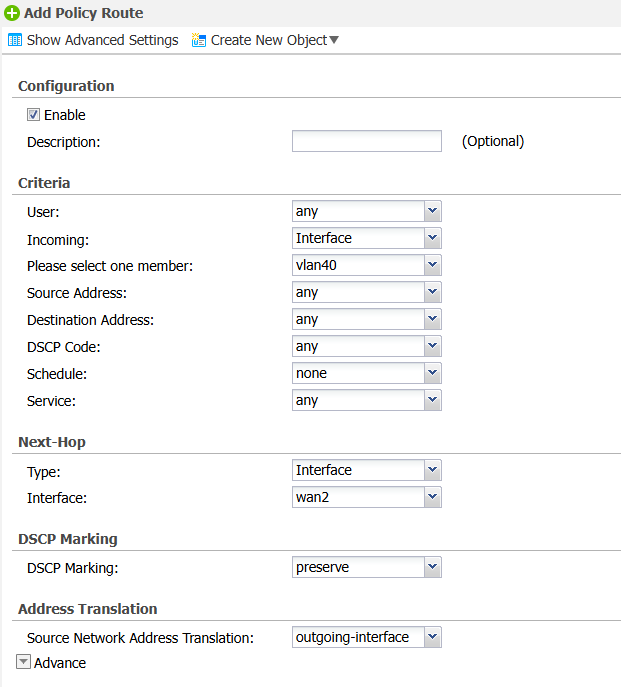

rule 2
incoming VLAN40
next hop WAN2

and thats it when ping fails for rule 1 rule 2 takes over and you can do the same for VLAN50

Gel

https://community.zyxel.com/en/discussion/comment/79447#Comment_79447

Sorry, I'm using the USG FLEX 200. Could you show me with pictures how to do this setup?

PeterUK

the status goes red when ping fail going to the next rule 2 and when ping is back up rule 1 takes over again

Gel

https://community.zyxel.com/en/discussion/comment/79449#Comment_79449

Thank you very much for the information. I'll take the test and come back to tell you what happened.

Gel

@PeterUK

Thank you very much, it worked. Now I will do this for other VLANs as well.
