GUEST WIFI on NWA50AX PRO wo NEBULA

xavierm

Hi,

NWA50AX PRO last firmware, NO NEBULA

I Try to configure a GUEST WIFI

Seach google and find https://mysupport.zyxel.com/hc/en-us/articles/360012179459--AP-How-to-configure-a-Guest-Wi-Fi-using-VLAN

Last step VLAN Setup can't be execute since I don't have any add button

Acutally I see my WIFI GUEST but can't connect to it.

Do you have a working solution

BR

Zyxel_Lynn

Hi @xavierm ,

Hi, the link you provided shows how to configure Wi-Fi with VLAN setup via Nebula. However, since your NWA50AX PRO is operating in standalone mode, the management interface will be completely different. To configure a Wi-Fi SSID in standalone mode, please follow these steps:

Step 1: Log in to the AP's local web GUI. Enter the IP address of your AP in the web browser, then enter the default username and password.

Username: admin

Password: 1234 (default - you can change this to a custom password)

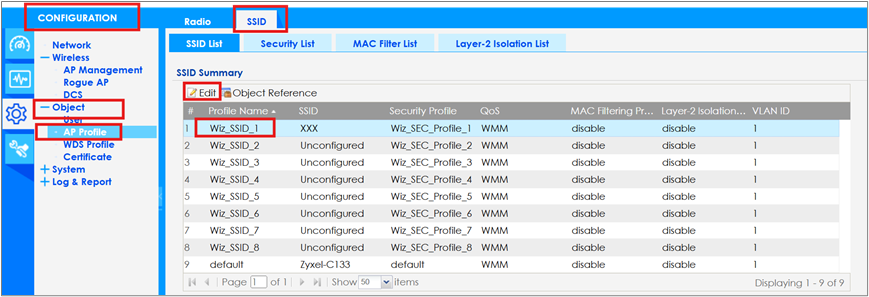

Step 2: Navigate to the SSID configuration. Go to Configuration > Object > AP Profile > SSID. Select an SSID profile and click the Edit button.

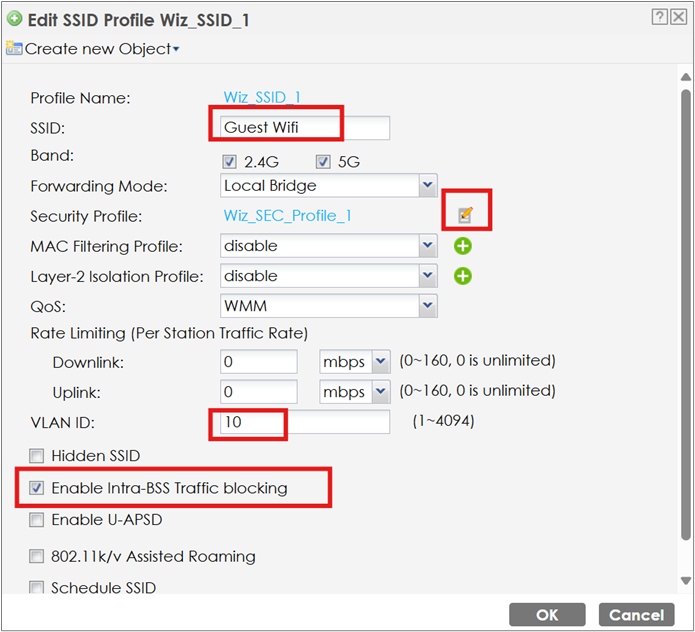

Step 3: Configure the Guest Wi-Fi settings.

Configure the SSID as Guest Wi-Fi and assign a VLAN ID (for example, VLAN 10) to this SSID. Enable "Intra-BSS Traffic Blocking" to prevent clients connected to the same SSID from accessing each other. Also, click the Security Profile button to configure the security options.

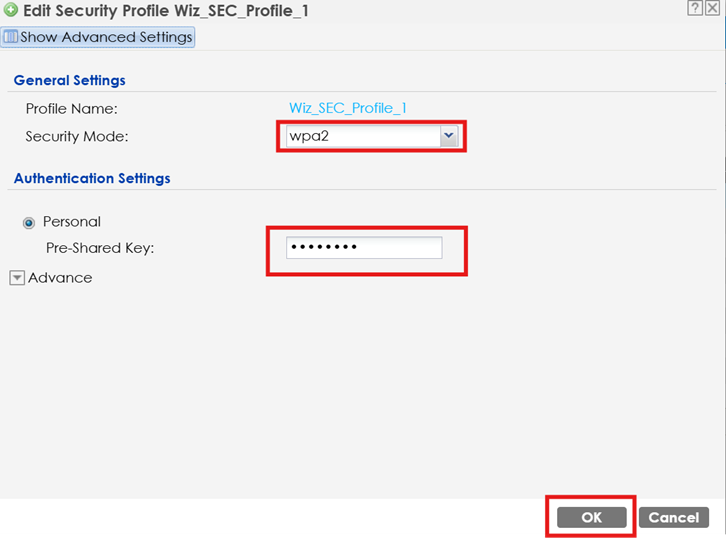

Step 4: Set up security

The configuration window will appear after you click the security profile edit button. Select the security mode as 'WPA2' and enter your desired password. Users will need to enter this password to connect to this SSID. Click OK when finished.

Step 5: Apply the configuration.

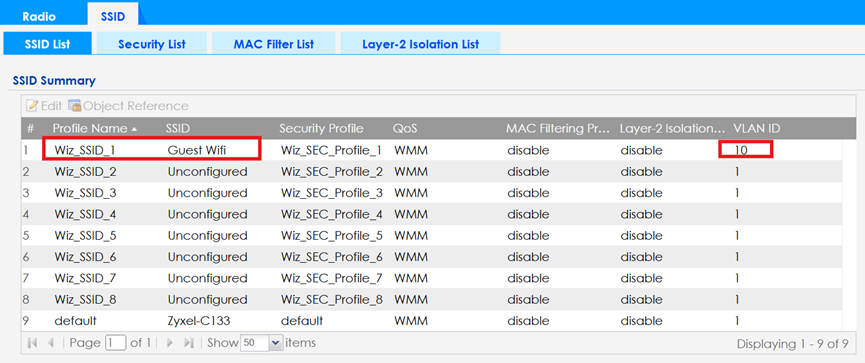

After clicking OK, the Guest Wi-Fi SSID will appear in the SSID list.

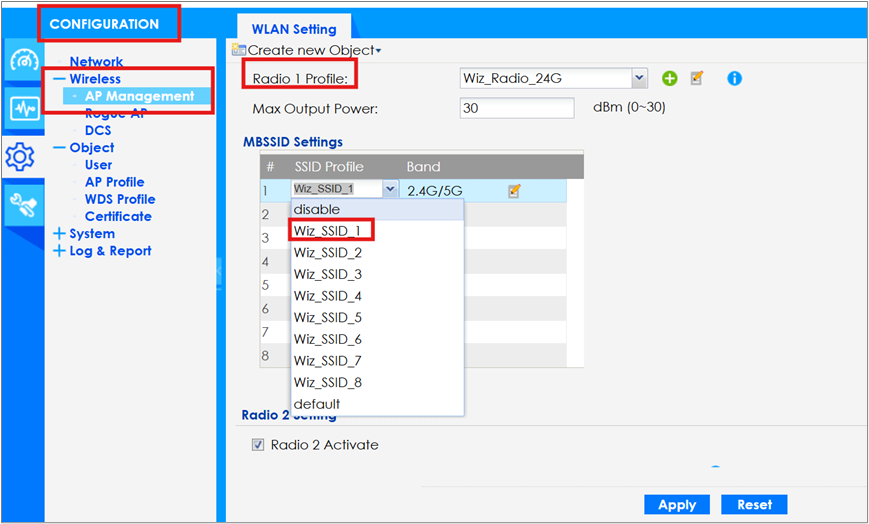

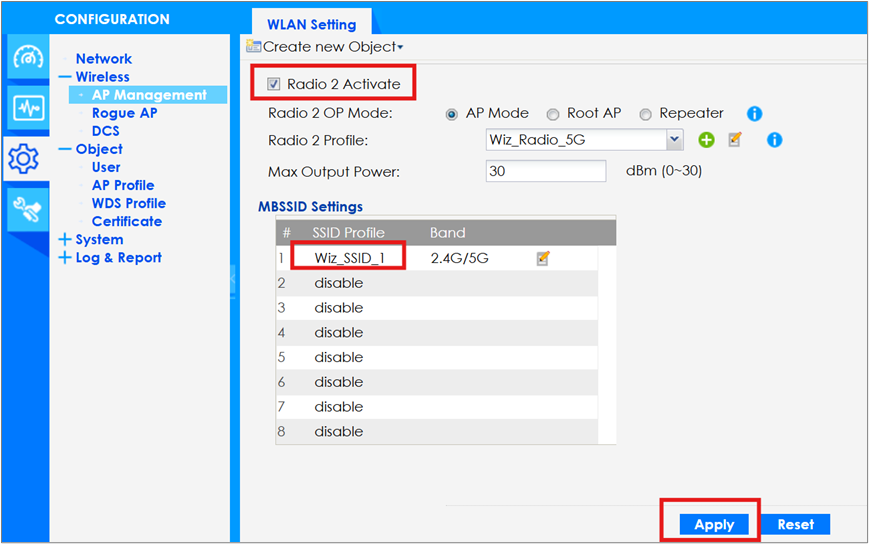

Next, navigate to Configuration > Wireless > AP Management, select the SSID profile you just configured (in this case, Wiz_SSID_1) for both radio 1 and radio 2. Then click the Apply button.

After completing these five steps, you will have successfully configured the SSID in standalone mode for your NWA50AX PRO AP.

If you have any further questions, please don't hesitate to contact me.

Thanks!

Lynn
