VPN SSL: unable to access to a server folder

Matt10669
Matt10669 Posts: 27 image  Freshman Member
Zyxel Certified Network Administrator - Security First Comment Third Anniversary
in Security

Hi

I need to connect a remote pc to an internal server folder. My LAN is a domain network type and I'm running a USG 1100. I've configured the SSL VPN in the firewall and the remote pc is connected succesfully to the firewall. SecuExtender shows:

Client IP: 192.168.200.11
Server IP: 217.xxx.xxx.xxx
DNS: 192.168.0.2, 8.8.8.8
Route/s: 192.168.0.0/24

I can ping all the LAN pc from the remote pc so I guess everything is correct but I can't access the server folder. If I type \\192.xxx.x.x (the server IP) nothing happens.
All the Network Extensions are flagged and the DNS1 is the Zywall. Maybe I'm forgetting something about domain or network permissions? Thanks in advance for all the helps.

All Replies

  • PeterUK
    PeterUK Posts: 4,168 image  Guru Member
    250 Answers 2500 Comments Friend Collector Eighth Anniversary
    edited October 27

    This would be windows file share?

    So the server is on 192.168.0.0/24 the remote PC must not on that IP subnet too?

    File share would be port 445 when you do \\192.xxx.x.x this allowed by USG?

    Does the server have its gateway set on it and firewall to allow from remote 192.168.200.11 to port 445?

    if you do a packet capture on the server do you see the incoming SYN?

  • Matt10669
    Matt10669 Posts: 27 image  Freshman Member
    Zyxel Certified Network Administrator - Security First Comment Third Anniversary

    Hi,

    So the server is on 192.168.0.0/24 the remote PC must not on that IP subnet too?
    the remote pc is on a DHCP network

    File share would be port 445 when you do \\192.xxx.x.x this allowed by USG?
    I don't know, how can I open that port?

    Does the server have its gateway set on it and firewall to allow from remote 192.168.200.11 to port 445?
    Server gateway is 192.168.0.1

    if you do a packet capture on the server do you see the incoming SYN?
    I don't know

    Thank you

  • PeterUK
    PeterUK Posts: 4,168 image  Guru Member
    250 Answers 2500 Comments Friend Collector Eighth Anniversary

    The remote PC before SSL VPN connects must not be on 192.168.0.0/24 by DHCP

    Your SSL VPN will be set to a Zone normally "SSL_VPN" you need to make a Policy control rule from SSL_VPN to your server LAN zone.

    You can get Wireshark

    Wireshark • Go Deep | Download

    Before capture put in main filter

    port 445

  • Matt10669
    Matt10669 Posts: 27 image  Freshman Member
    Zyxel Certified Network Administrator - Security First Comment Third Anniversary
    edited October 28

    Can't install wireshark in a win 2012 server. It seems like the client doesn't has the authorisations to access the folder. Maybe it's due to the domain network? Strange enough it's that worked the first day I configured the VPN. The second day and so on it stopped working

  • PeterUK
    PeterUK Posts: 4,168 image  Guru Member
    250 Answers 2500 Comments Friend Collector Eighth Anniversary

    Ok you can packet capture on the USG for the given port to see if the SSL client is sending SYN to server.

  • Matt10669
    Matt10669 Posts: 27 image  Freshman Member
    Zyxel Certified Network Administrator - Security First Comment Third Anniversary

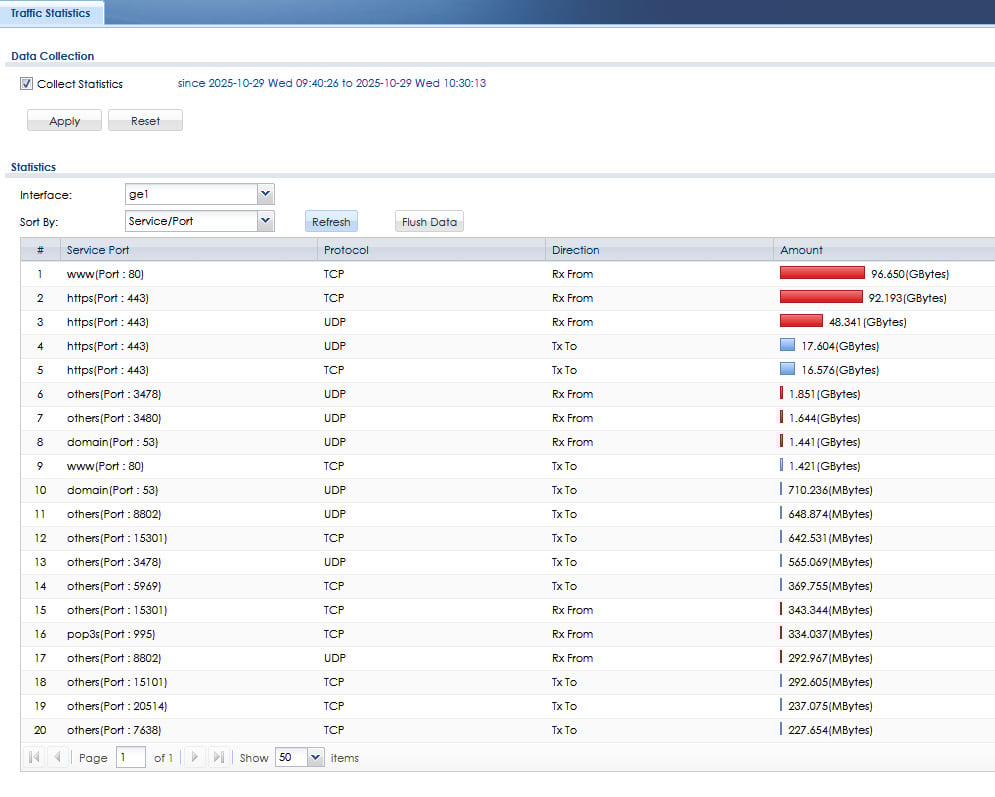

    port statistic.jpg

    I don't see traffic on 445 port. What do you think about?

  • PeterUK
    PeterUK Posts: 4,168 image  Guru Member
    250 Answers 2500 Comments Friend Collector Eighth Anniversary
    edited October 29

    Thats Statistics go to maintenance > diagnostics > packet capture tab move the interface your server in on to be captured put in host port 445 and click capture.

    On the remote PC do \\192.168.x.x for your server IP then stop capture go to file tab and view the .cap file and look for the SSL remote IP.

    also is remote PC before SSL VPN connects not on 192.168.0.0/24 by DHCP?

  • Matt10669
    Matt10669 Posts: 27 image  Freshman Member
    Zyxel Certified Network Administrator - Security First Comment Third Anniversary
  • Matt10669
    Matt10669 Posts: 27 image  Freshman Member
    Zyxel Certified Network Administrator - Security First Comment Third Anniversary

    also is remote PC before SSL VPN connects not on 192.168.0.0/24 by DHCP?

    no

  • PeterUK
    PeterUK Posts: 4,168 image  Guru Member
    250 Answers 2500 Comments Friend Collector Eighth Anniversary
    edited October 30

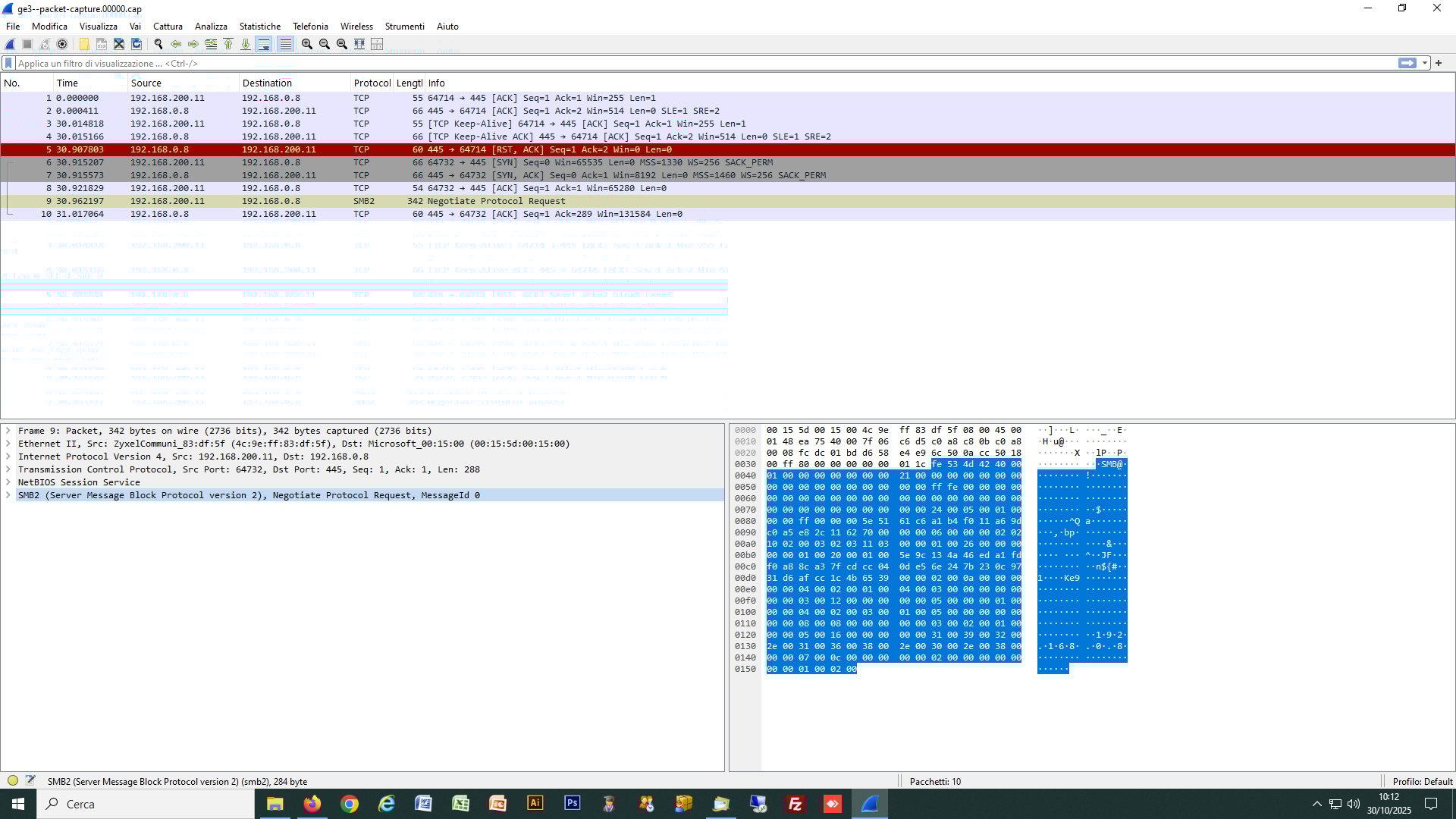

    So there is two connection with there being SYN, SYN ACK and ACK so like the server is not allowing access to the file share.

    is the client and server on the same workgroup name?

    If needed you could run a FTP server instead
