SWT – VLAN Ingress Check

Zyxel_Lynn

Overview

The VLAN Ingress Check is a network security and traffic control mechanism on Nebula-managed switches. It ensures that only traffic belonging to VLANs (Virtual LANs)assigned to a specific port is accepted.

If a packet enters a port that is not a member of the VLAN it claims to belong to, the switch drops that packet. This prevents unwanted or misrouted traffic from propagating through the network.

Starting from Nebula 19.20, the VLAN Ingress Check is enabled by default on all switch ports for newly created Nebula sites.

1. What Is VLAN Ingress Check?

When VLAN Ingress Check is enabled, the switch performs an incoming VLAN membership validation on every port:

• If the VLAN ID (VID) of the incoming packet matches one of the VLANs assigned to that port → Packet is accepted and forwarded.
• If the VLAN ID does not match any VLAN membership of that port → Packet is dropped.

This ensures that each port only handles VLAN traffic it is explicitly configured to belong to.

2. VLAN Membership Rules

A port is considered a VLAN member if it meets one of the following conditions:

Condition	Description
Fixed/Access port	The port is manually assigned to a specific VLAN (e.g., Access VLAN 100).
Trunk port	The port allows multiple VLANs and accepts all VLAN-tagged traffic. By default, all VLANs are treated as members of the trunk port unless restricted.

3. VLAN Ingress Behavior Explained

Example1: Access Port Receiving Untagged Traffic

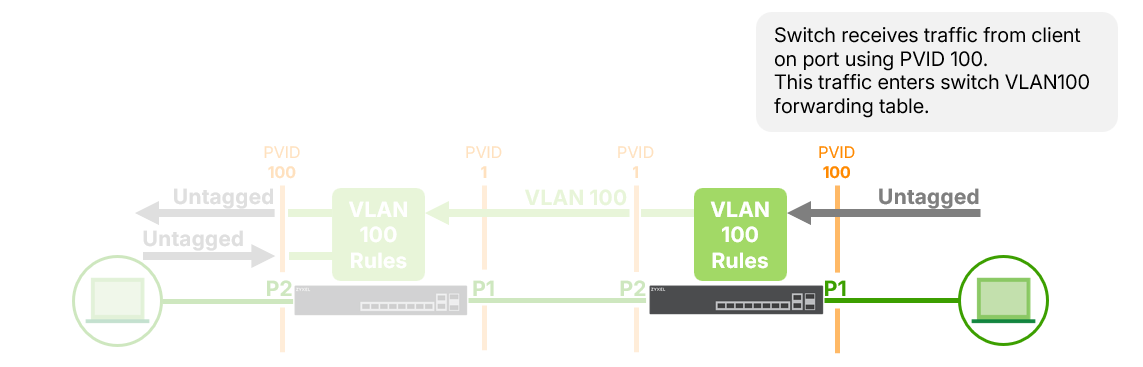

1. A laptop sends untagged frames to the switch via Port 1.

2. Port 1 is configured as Access VLAN 100.

3. The switch tags the incoming traffic with VLAN 100 internally and forwards it

according to VLAN 100’s forwarding rules.

4. Traffic can exit from other ports that are also members of VLAN 100.

✅ Allowed traffic flow: Port 1 → Port 2(both are VLAN 100 members)

Example2: Port Not in VLAN Member List

If Port 1 is not a member of VLAN 100 (set to “None”), and it receives VLAN 100 traffic:

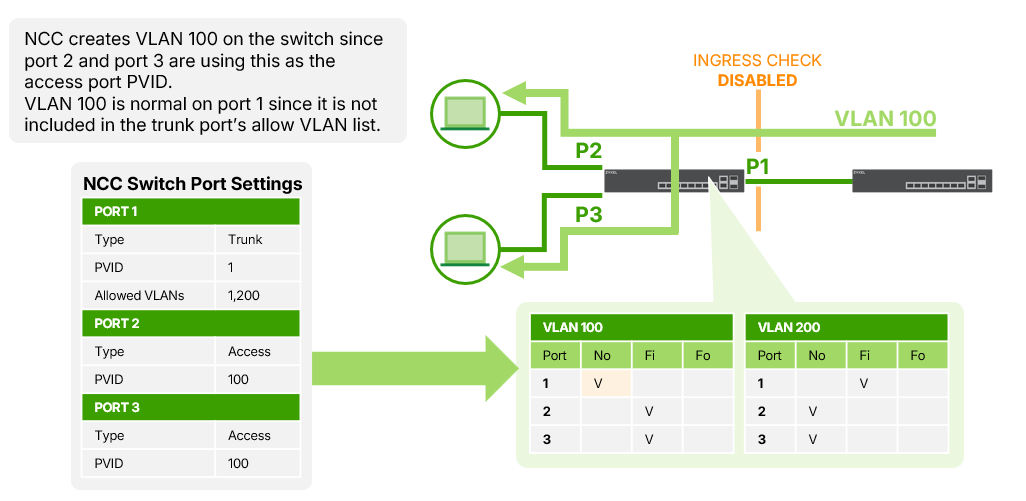

• Ingress Check Disabled:
  The switch still forwards the traffic if other ports (e.g., Port 2 or 3) are

members of VLAN 100.

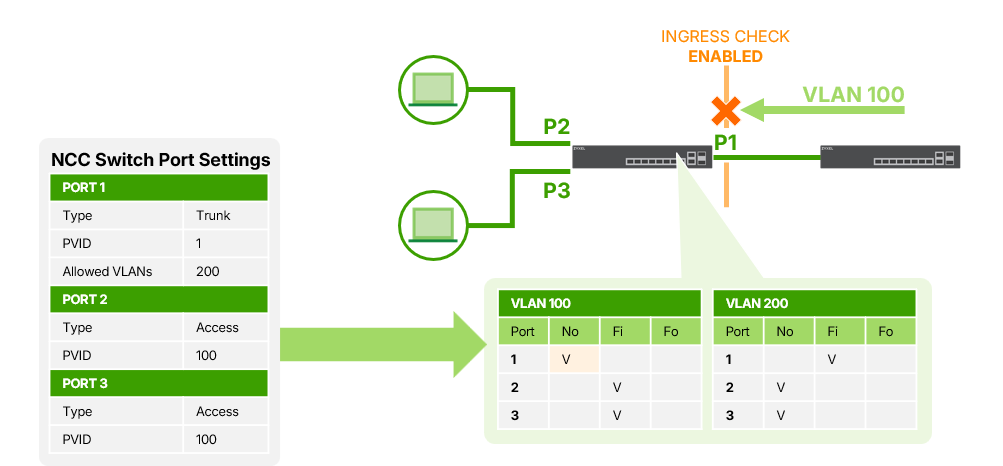

• Ingress Check Enabled:
  The switch drops the incoming VLAN 100 traffic immediately because Port 1 is

not a valid member of VLAN 100.

❌ Dropped traffic: Port 1 (non-member) →VLAN 100 packet rejected

Example3: Trunk Port Behavior

If Port 1 is configured as Trunk (allow all VLANs):

• All VLANs are considered members of Port 1.
• VLAN Ingress Check allows all VLAN-tagged traffic to pass.

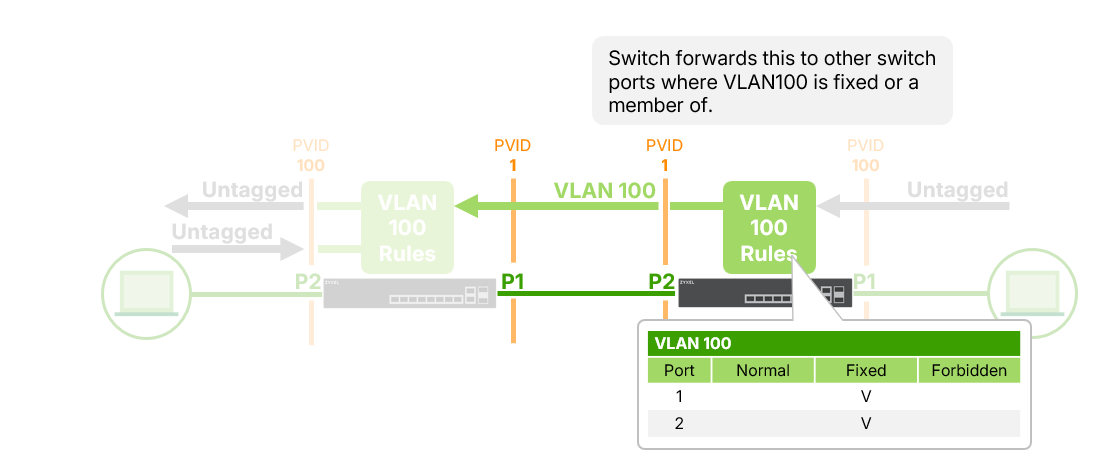

• For example, traffic tagged with VLAN 100 entering Port 1 is accepted and forwarded to any port that is a member of VLAN 100.

✅ Allowed traffic flow: Port 1 (Trunk) →Port 3 (Trunk, VLAN 100 allowed)

4.Default Behavior in Nebula

Site Creation Time	VLAN Ingress Check Default	Notes
After Nebula 19.20 release	Enabled on all ports	Automatically provisioned to all managed switches
Before Nebula 19.20 release	Enabled automatically after upgrade	Applies to all supported switch models.
Exception	Older models (e.g., NSW100/NSW200)	These two models do not support the VLAN Ingress Check feature.

5. How to Verify VLAN Ingress Check Status

You can confirm VLAN Ingress Check status directly on the switch via CLI:

show configuration

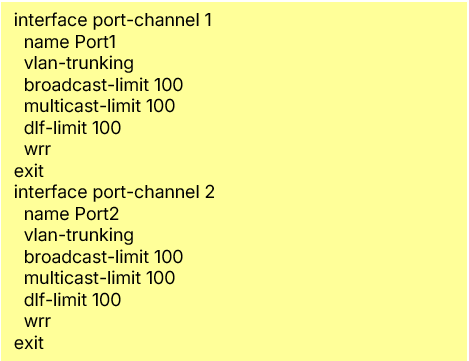

Example Output (Before 19.20):

Port 1 & Port 2 do not display and ingress-check information

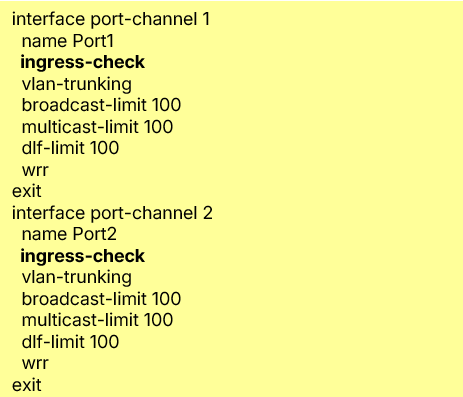

ExampleOutput (After 19.20):

Port 1 & Port 2 display ingress-check enabled

This confirms that VLAN Ingress Check is now active on the switch ports.

6.Impact on Network Behavior

• Traffic filtering: Prevents mis-tagged or unauthorized VLAN traffic from being accepted.
• Improved network security: Ensures ports only handle VLANs they belong to.
• No user impact: Since non-member ports should not receive traffic for unrelated VLANs, enabling this feature does not disrupt normal operations.
• Automatic provisioning: No manual action is required after Nebula 19.20 — the configuration is applied automatically to all eligible switches.

7.Summary

Aspect	Description
Feature Name	VLAN Ingress Check
Function	Ensures incoming VLAN traffic matches port membership
Default Status	Enabled for all ports (from Nebula 19.20)
Supported Models	All Nebula Cloud Switches except NSW100/NSW200
Configuration Access	Automatically managed by NCC
Verification	CLI: show configuration
Network Impact	Enhances VLAN integrity and prevents misrouted traffic

To sum up, VLAN Ingress Check enforces VLAN membership validation for each port, ensuring traffic integrity and preventing untagged or misassigned VLAN packets from passing through the switch.

From Nebula19.20, this security mechanism is automatically enabled by default on all Nebula-managed switches, improving reliability and network segmentation with zero additional setup required.
