uOS - GUI Enhancement

Zyxel_Claudia

GUI Enhancement

Zyxel has introduced several User Interface (UI) and monitoring enhancements for the H Series (uOS) firewalls with firmware version 1.37.

Packet Flow Explorer

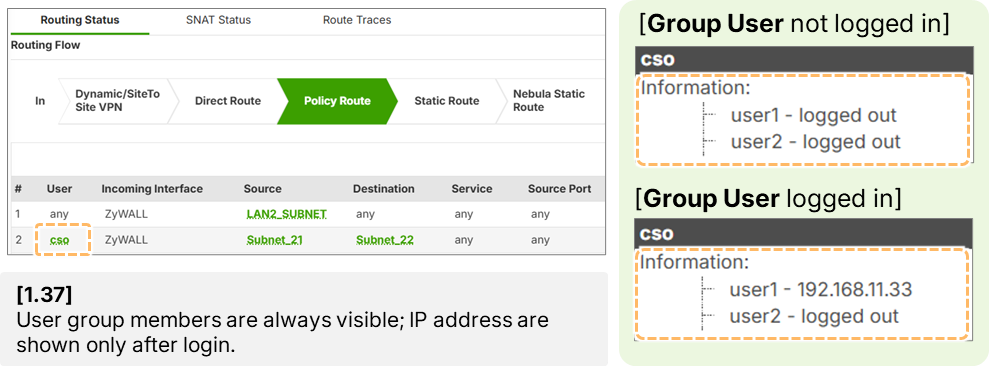

• User Identity: Tooltips now display detailed user information (username, IP, login status) for traffic hitting specific policy routes.
• Group Tracking: Hovering over a user group reveals a list of all members and their current IP addresses if logged in.



System Visibility

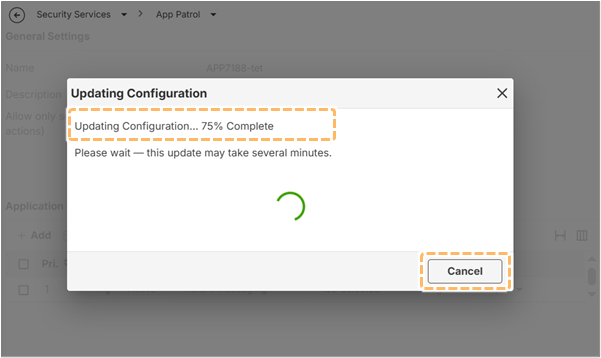

• App Patrol Progress: A new progress bar appears when renaming App Patrol profiles, allows users to cancel the renew configuration while in progress.


• Log Filtering: Event logs now fix filtering by specific protocols (TCP, UDP, ICMP) links to the addition of a new "proto name" attribute.
• SSL Inspection: The summary page now highlights the session count in red if the 4,000-session limit is reached.
