Implementing Captive Portal with NID FS Integration

Zyxel_Lynn

Captive Portal Support for NID FS

Integrating the Nebula Identity Federation Service (NID FS) with Captive Portals allows for a modernized, multi-stage authentication process for wireless users.

The Three Stages of NID FS Login

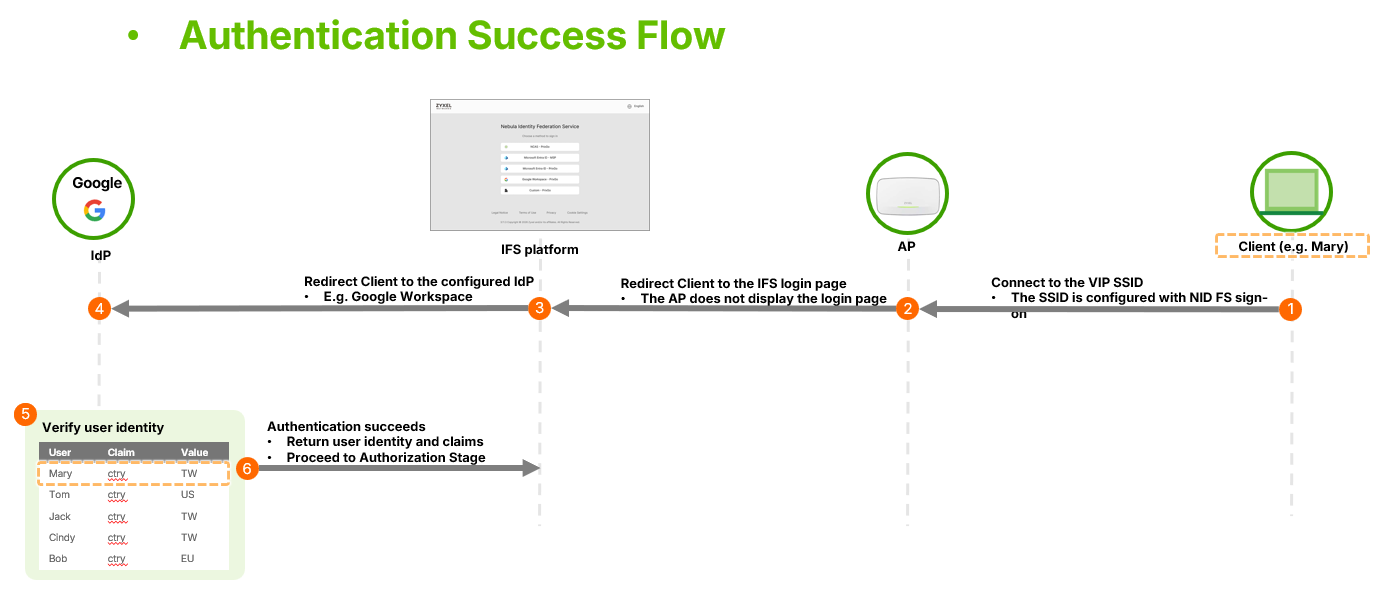

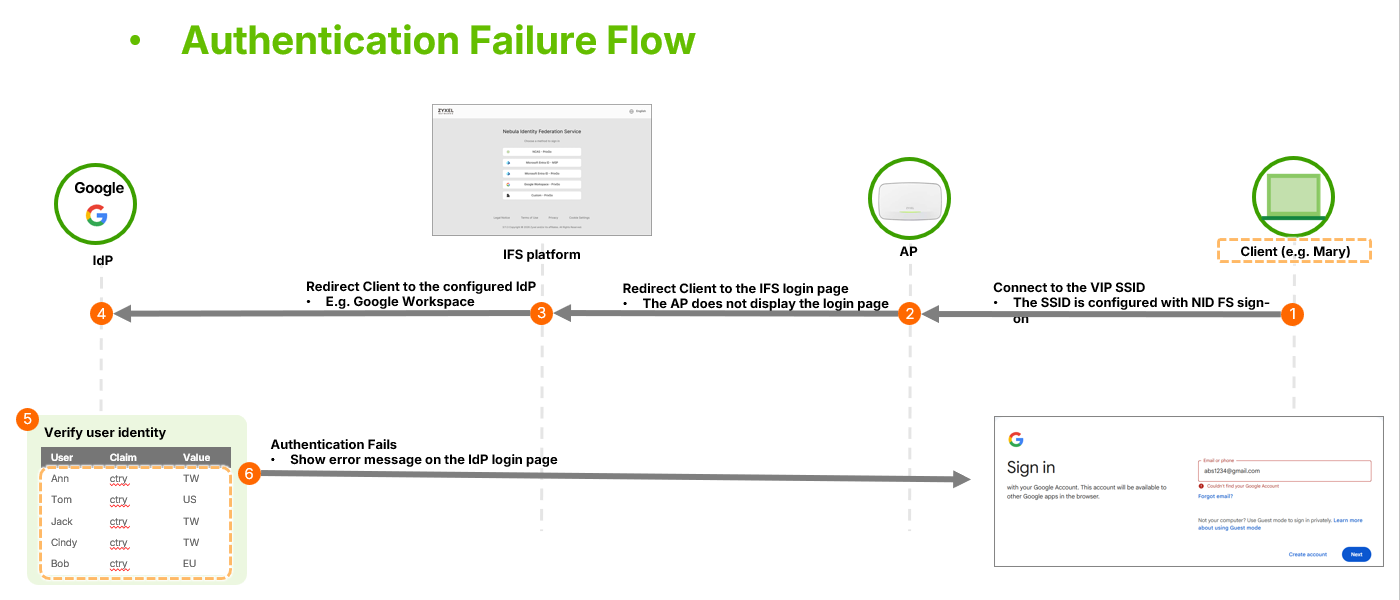

1. Authentication Stage: Handled entirely by the selected IdP (e.g., Google or Entra ID). The IFS platform redirects the user to the IdP's login page. Zyxel devices do not see the credentials directly.

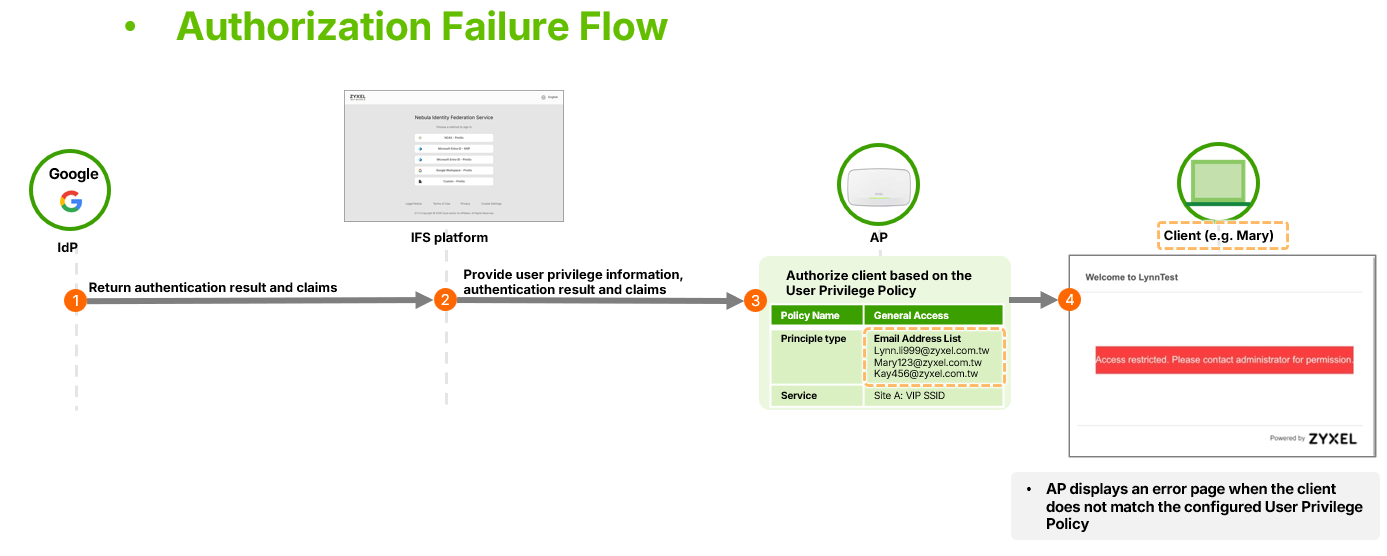

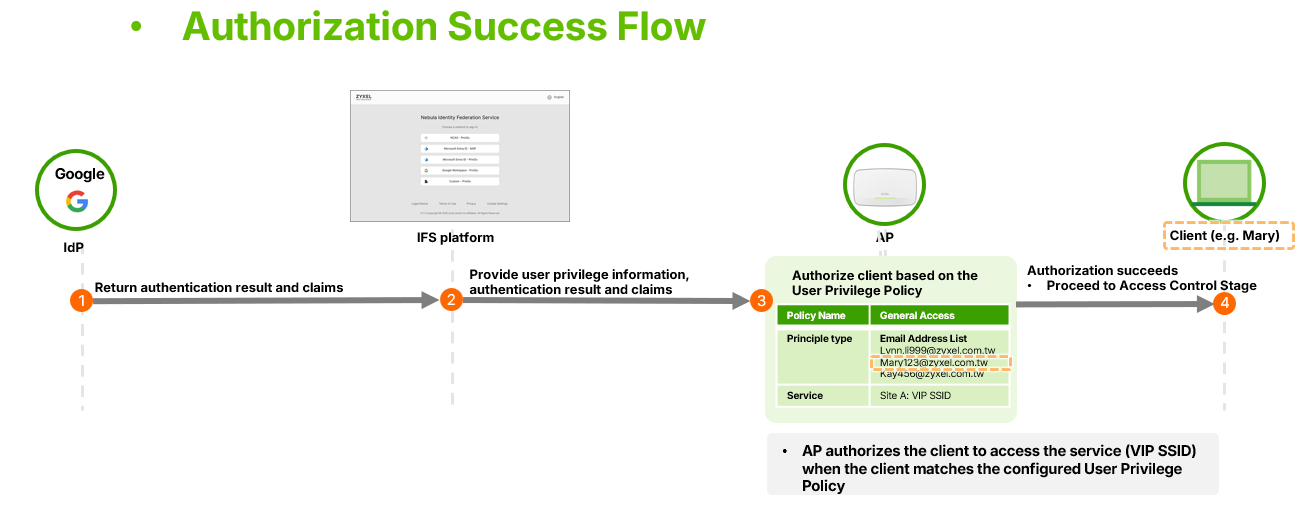

    2. Authorization Stage: Handled by the AP. The device checks the authentication result and the principle type against the privilege policies configured on the IFS platform.

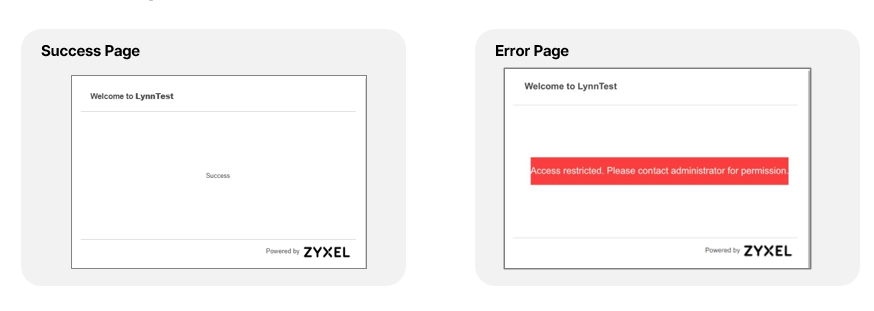

      3. Access Control Stage: The device grants or denies network access. If authorization
        fails, the device displays a new "Error Page" indicating restricted access. If both
        authentication and authorization are successful, the AP allows service access and display
        a "Success Page".

Configuration and Behavior Notes

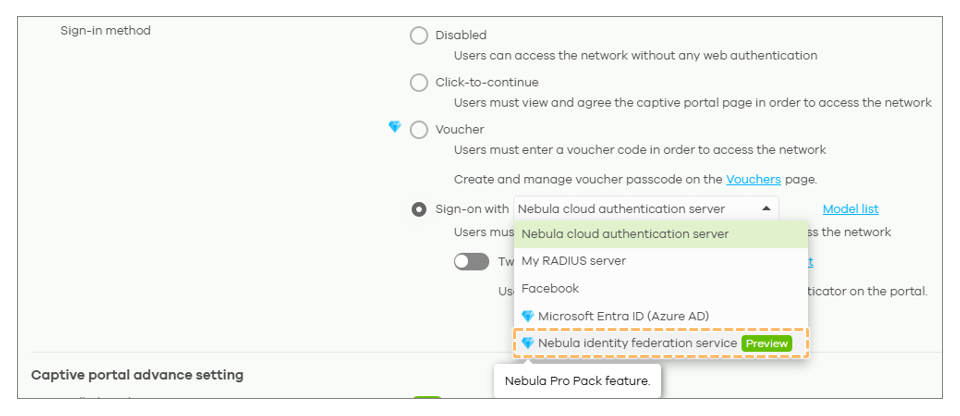

• Setup: In SSID settings, select "Sign-on with Nebula Identity Federation Service".

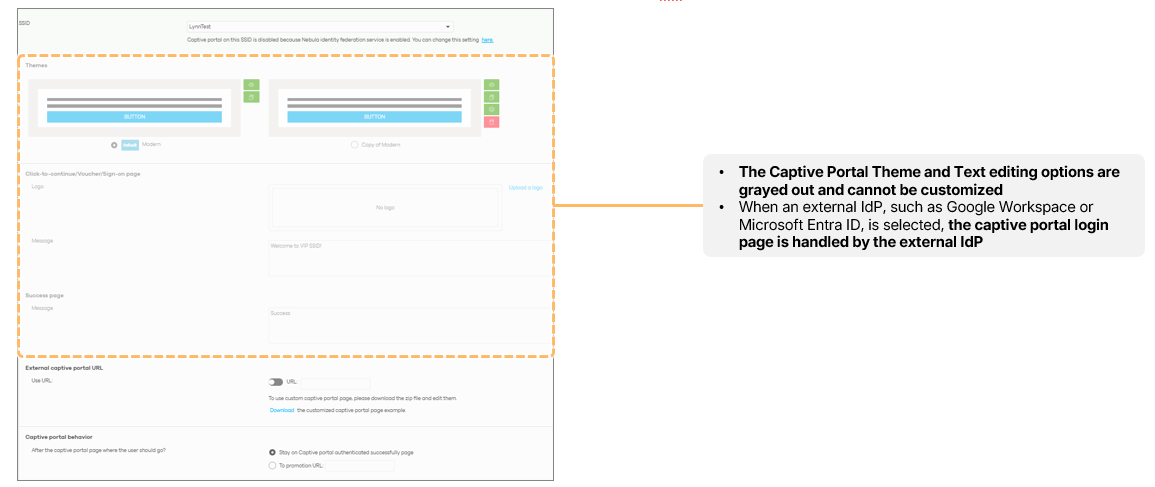

• Customization Restrictions: Because the login page is hosted by a third-party IdP, theme and text customization for the login page is restricted within Nebula.

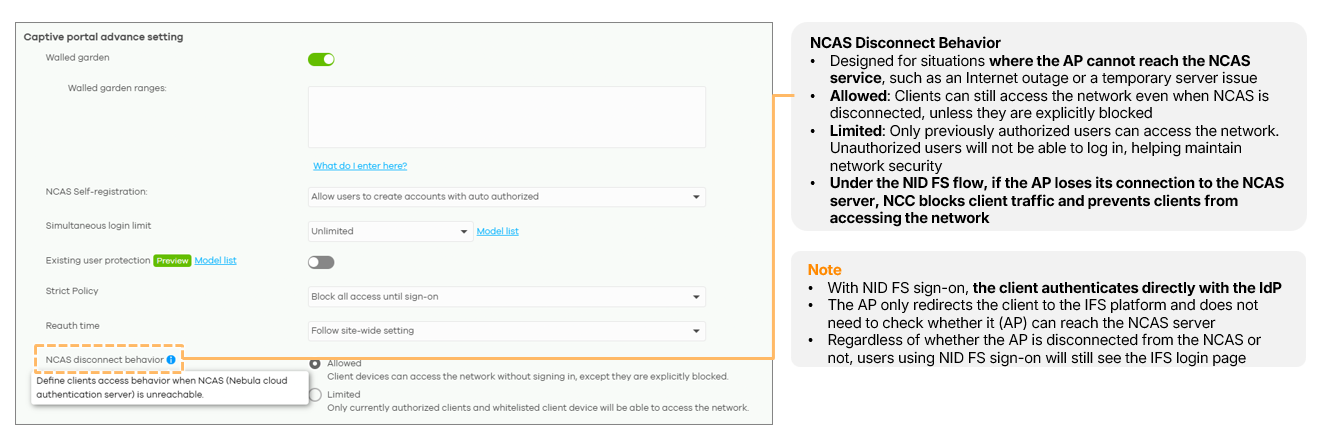

• NCAS Disconnect Behavior: If the device loses its connection to the NCAS Server, the current behavior is to drop all traffic to ensure security, regardless of previous "Allow/Limit" settings.

• License Requirement: This feature is exclusive to Pro Pack organizations. If the license expires, the SSID will be automatically disabled.
