How to establish Site-to-site VPN when both Nebula gateways are in different Organizations?
Zyxel_Jason
Posts: 411 Zyxel Employee
In Figure1,
there are two Nebula gateways that want to establish site-to-site VPN
connection, but they are in different organizations.
For Demo/Demo:
For Zyxel.Nebula/test Jason NSG100:
Test the Result:
On Demo/Demo, go to Monitor >Security gateway > VPN connection
On Zyxel.Nebula/test Jason NSG100, go to Security gateway > Monitor > VPN connection
Figure 1 Site-to-SIte VPN
All network IP addresses and subnet masks are used as examples in this article. Please replace them with your actual network IP addresses and subnet masks. This example was tested Nebula gateway, switch, APs with the last firmware version on Nebula Center Control (NCC).
Configuration Setting:For Demo/Demo:
Go to "Configure > Security gateway > Site-to-Site VPN > Non-Nebula VPN peers" and configure the parameters.
Name: Zyxel_Nebula
Public IP: 61.222.75.18
Private subnet: 192.168.3.1/24
IPsec policy: Default
Preshared Secret: <Pre-shared key> (Need to be the same as another site)
Availability: This site (Depends on the scenario)
For Zyxel.Nebula/test Jason NSG100:
Go to "Configure > Security gateway > Site-to-Site VPN > Non-Nebula VPN peers" and configure the parameters.
Name: Demo
Public IP: 36.227.108.105
Private subnet: 192.168.1.199/24
IPsec policy: Default
Preshared Secret: <Pre-shared key> (Need to be the same as another site)
Availability: This site (Depends on the scenario)
Test the Result:
On Demo/Demo, go to Monitor >Security gateway > VPN connection

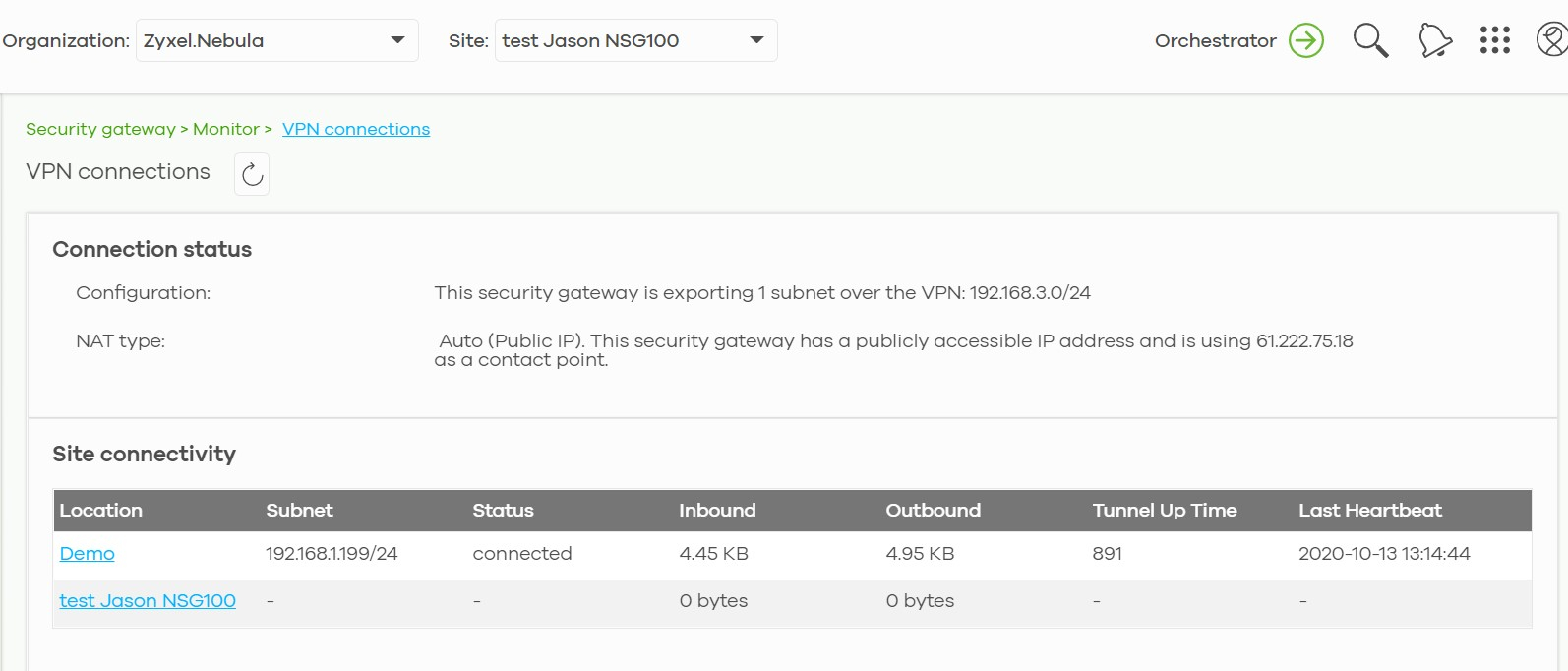

On Zyxel.Nebula/test Jason NSG100, go to Security gateway > Monitor > VPN connection
Jason
