[NEBULA] What is the difference between All sites and This Site for Availability configuration?

Zyxel_Irene
Posts: 132
Zyxel Employee

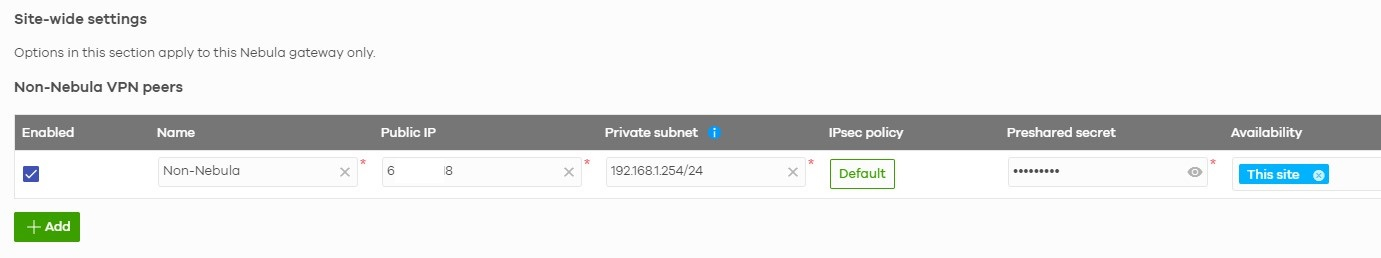

When user want to establish VPN tunnel between Non-Nebula and Nebula device, they have to go to Security Gateway > Configure > Site-to-Site VPN to create Non-Nebula VPN peers on NCC.

Then you will see Availability option there, and in dropdown list, there are All sites and This site you can select.
What is the difference between All sites and This site for Availability configuration?
If the destination is Client 01
If the destination is Client 01

Then you will see Availability option there, and in dropdown list, there are All sites and This site you can select.
What is the difference between All sites and This site for Availability configuration?
- All sites: It means the client under VPN topology can reach others who connect with remote side. We take an example below,
If the destination is Client 01
- Traffic from Client A will be transmitted to Site 01 first through VPN tunnel between Non-Nebula and Site 01.
- Then it will be passed to Client 01 by Site 01 NSG.
- Traffic from Client A will be transmitted to Site 01 first through VPN tunnel between Non-Nebula and Site 01.
- Then it will be transferred by Site 01 NSG to Site 02 NSG to reach Client 02. (There is no direct VPN tunnel between Non-Nebula and Site 02.)
- This Site: It means the client under local site can reach clients under remote site only. We also take an example below,
If the destination is Client 01
- Traffic from Client A will be transmitted to Site 01 first through VPN tunnel between Non-Nebula and Site 01.
- Then it will be passed to Client 01 by Site 01 NSG.
- The destination is unreachable.
