USG60 - NAS conecntion from Home to Office

Michi155
Michi155 Posts: 2  Freshman Member
First Comment
edited April 2021 in Security

We have a USG60 Firewall and i want to have access to our NAS from outside.

Without the Firewall it is not a problem I can contacted to the NAS with PPTP and L2tp/IPSec.

I have a config a NAT in the Firewall but this is not working I can’t have access to the NAS, I have no idea what is wrong.


All Replies

  • Zyxel_Emily
    Zyxel_Emily Posts: 1,376  Zyxel Employee
    Zyxel Certified Network Administrator - Security Zyxel Certified Sales Associate 100 Answers 1000 Comments

    Here is an example to access HTTPS page (port 50000) of a Zyxel NAS in LAN of USG.

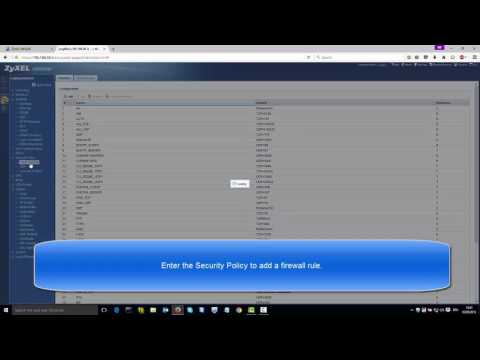

    Zyxel USG and NAS Series - How to Setup a NAT Rule (Port Forwarding)

    Your configurations for NAT rule and security policy rule are correct.
    Make sure the external IP "WANNas_IP" is the USG60's WAN IP.
    Probably it hits other NAT rule with the same original port 553.
    Could you show us the all NAT rules in CONFIGURATION > Network > NAT?

  • Michi155
    Michi155 Posts: 2  Freshman Member
    First Comment
    I have try it with the Video but still no access.


  • Zyxel_Emily
    Zyxel_Emily Posts: 1,376  Zyxel Employee
    Zyxel Certified Network Administrator - Security Zyxel Certified Sales Associate 100 Answers 1000 Comments

    Since there are no problems with the configuration on NAT rules and security policy rules, we need more information for troubleshooting.
    Required information will be in the private message.
  • Zyxel_Emily
    Zyxel_Emily Posts: 1,376  Zyxel Employee
    Zyxel Certified Network Administrator - Security Zyxel Certified Sales Associate 100 Answers 1000 Comments

    Hi @Michi155,



    There is double NAT in your topology.

    Internet: 91.x.x.x

    Router: 192.168.178.1

    USG60:

    WAN- 192.168.178.23;

    LAN- 192.168.1.22

    NAS: 192.168.1.90



    Here is an example with double NAT. You need configure NAT and firewall on not only USG60 but also the router.

    In the following scenario, the service is RDP (port 3389).

    If you NAS is port 8080, make sure there are no other service in router's lan or router itself using the same port 8080.



    ISP-----(wan: 10.214.48.39)Router(lan1: 192.168.1.1)-------(wan: 192.168.1.33)USG60(lan1: 192.168.11.1)-----PC(192.168.11.33)



    On the router, create a NAT rule and firewall rule.

    NAT rule:

    External IP: 10.214.48.39

    Internal IP: 192.168.1.33

    port mapping:

    External: 3389

    Internal: 3389



    Firewall rule:

    From any to LAN1, destination: 192.168.1.33, service: 3389



    On USG60, create a NAT rule and firewall rule.

    NAT rule:

    External IP: 192.168.1.33

    Internal IP: 192.168.11.33

    port mapping:

    External: 3389

    Internal: 3389



    Firewall rule:

    From any to LAN1, destination: 192.168.11.33, service: 3389



    Test Result

    Access PC via RDP via 10.214.48.39:3389 successfully.
