NR5103E - Network parameters always showing 0 (RSCP, EcNo, CQI, etc.)

Options
Jusdrnejm
Jusdrnejm Posts: 2  Freshman Member

Dear Zyxel Support,

I’m using the ZYXEL NR5103E router with an LTE-A network and I’ve encountered an issue where the following network parameters always display as 0, regardless of actual network load or conditions:

RSCP: 0

EcNo: 0

CQI: 0

PMI: 0

RI: 0

MCS: 0

Device software details:

Module SW version: MP1V120XS.2133.01.B1

Current Firmware Version: V1.00(ACDJ.1)D1

This is the latest available firmware. I have already tried the following troubleshooting steps without success:

Switching between different network modes (5G/4G only, Auto, etc.)

Testing with both external (EXT) and internal (INT) antennas

Locking frequency bands and specific PCI cells

None of these actions resolved the issue — the values remain at zero at all times.

I understand from the documentation that parameters like RSCP and EcNo are specific to UMTS or GPRS, and that according to the guide:

> “This parameter is for UMTS or GPRS. The value is '0' (zero) if the Current Access Technology is not UMTS or GPRS. The value is 'N/A' if there is no network connection.”

That makes sense. However, parameters such as CQI, MCS, RI, and PMI are relevant for LTE/LTE-A, and I would expect them to report values under normal network conditions. Their persistent zero values suggest that there may be a firmware issue, a problem with reporting logic, or another software limitation.

Could you please clarify if this is a known issue or if a fix is available?

Thank you in advance for your support.

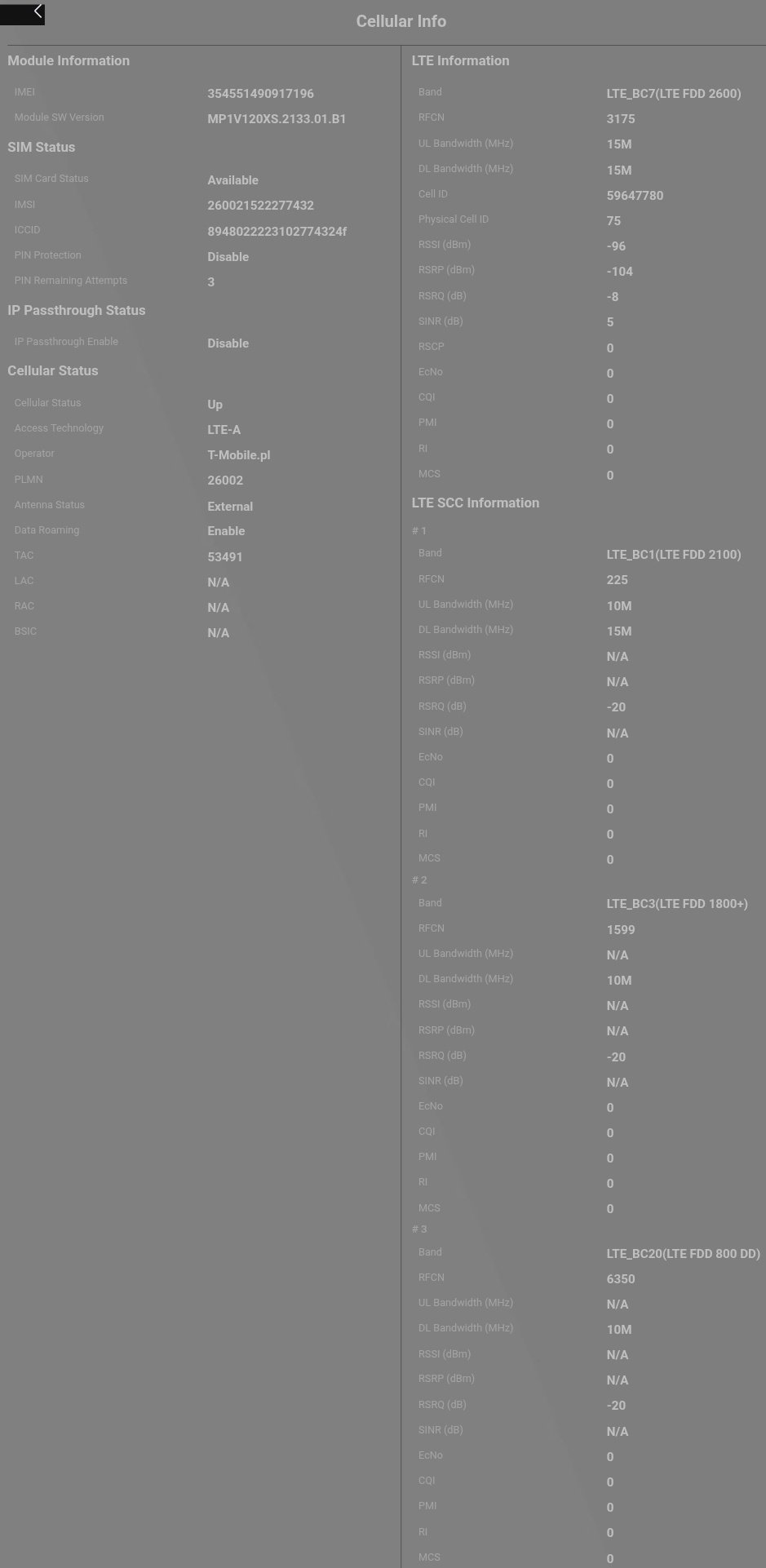

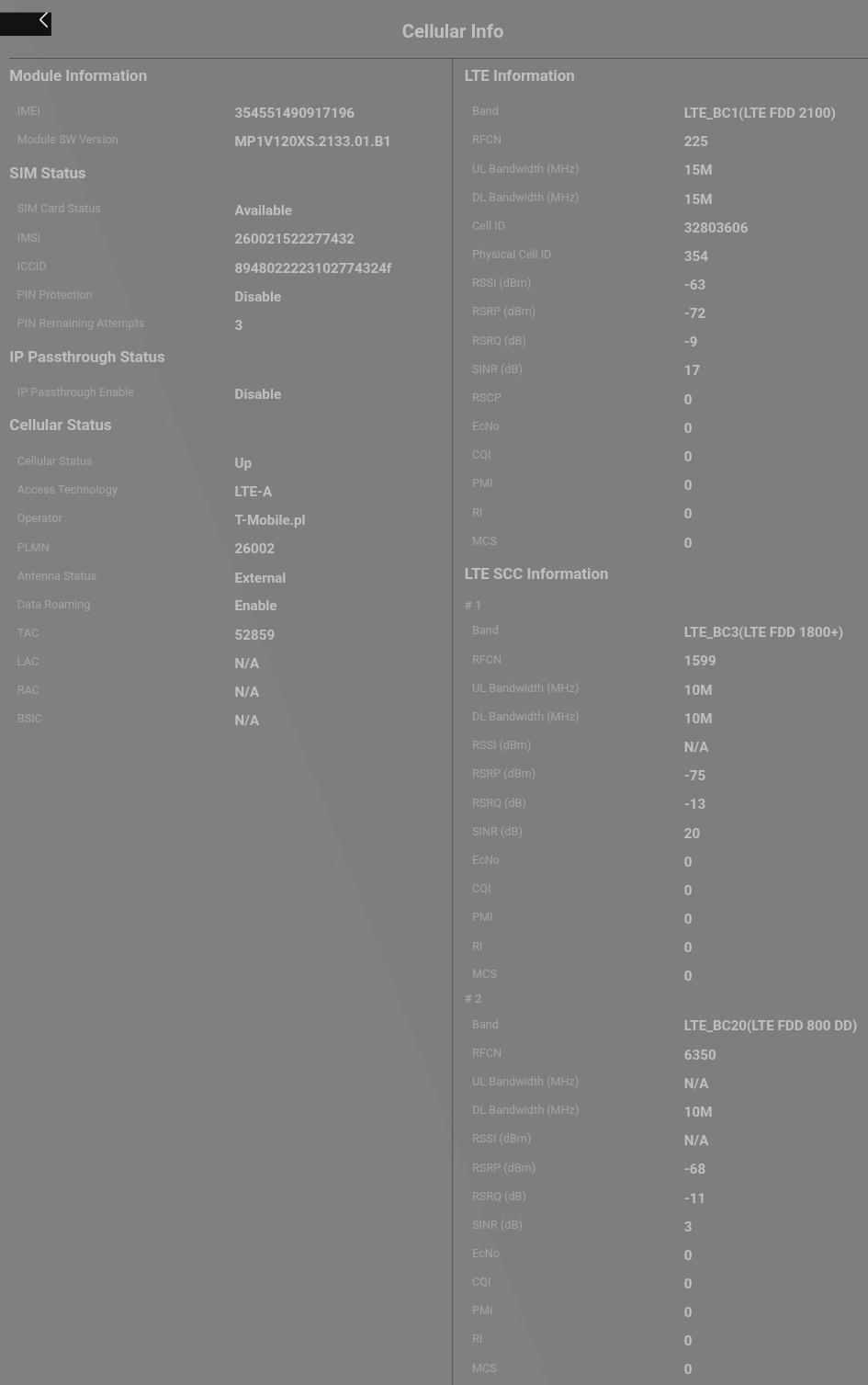

Screenshot_2025-07-29-13-37-25-784-edit_mark.via.gp.jpg Screenshot_2025-07-29-13-40-08-321-edit_mark.via.gp.jpg

Best regards
