Hello everyone,

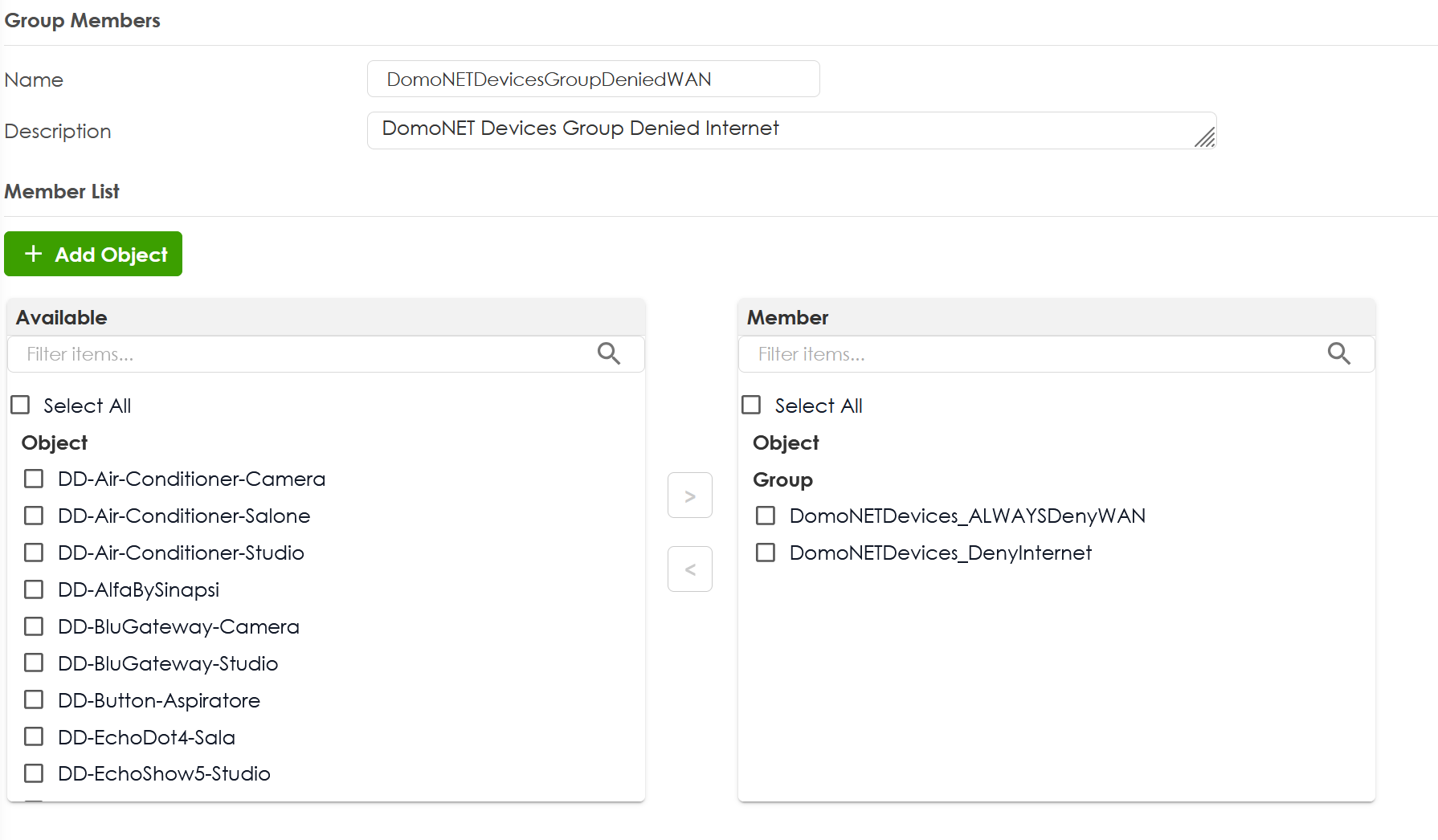

I have created an group object that contains other groups.

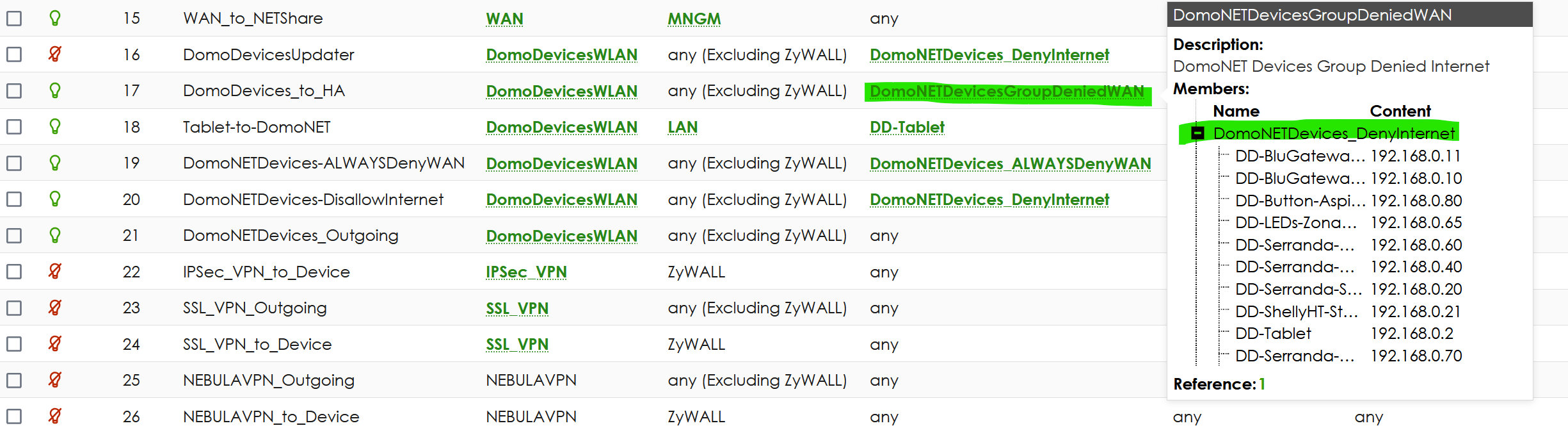

When I configure it as Source/Destination of a Policy Control, seems that is presented only one group of these (seems always the last group in the list).


Seems that is disappeared the "ALWAYSDenyWAN" group and in this case I don't know if is only a visual bug or really the "ALWAYSDenyWAN" group is not present (obviously I can check it from the log).

Thank you

All Replies

  • Maverick87
    Maverick87 Posts: 33 image  Freshman Member
    First Comment Friend Collector

    OK, I've checked the log and seems that both sub-groups hint the rule; so into the main group there are really two sub-groups but into the Policy Control view seems that only one group is reported (only the last in the list).

  • PeterUK
    PeterUK Posts: 4,097 image  Guru Member
    250 Answers 2500 Comments Friend Collector Eighth Anniversary
    edited October 7

    Yes just a display limitation really I don't like the idea of doing groups in a group.

  • Maverick87
    Maverick87 Posts: 33 image  Freshman Member
    First Comment Friend Collector

    You're right, but I have:
    - Some IoT devices that I need to connect to internet only for firmware upgrade (only few minutes per month) — DenyInternet;
    - Some other IoT devices that never reach internet — AlwaysDenyInternet

    So I define two rules:
    - One rule (deactivated by default) that cover only the DenyInternet group, in which I allow only certain IPs and Port (to permit the upgrade);
    - One rule that deny all traffic from the both groups — this rule is defined below the other rule.

    So, in this case:
    - When an DenyInternet device try to reach internet and keep the first rule enabled, enter on this only for defined destination IPs; if the IP isn't in the allowed destination, the connection is denied by the second rule;
    - When an AlwaysDenyInternet device try to connect to internet, is always denied because hint directly the second rule.

    And obviously both device types must reach internal devices and services

    If I don't use the groups in group, I need to define more than 2 rules; one for DenyInternet allow dest ip, one for deny others dest IP, one for deny AlwaysDenyInternet type.

    You can do this better?

    Thank you

  • PeterUK
    PeterUK Posts: 4,097 image  Guru Member
    250 Answers 2500 Comments Friend Collector Eighth Anniversary

    If that works for you I'm not going to say its wrong.
