Understanding the Cable Diagnostics Status of Switches on Zyxel Nebula

Zyxel_HsiuTe
Zyxel_HsiuTe Posts: 39 image  Freshman Member
Zyxel Certified Network Engineer Level 2 - Switch Zyxel Certified Network Engineer Level 1 - Switch Zyxel Certified Network Administrator - Switch First Comment

Q1: How to use Cable Diagnostics on Nebula

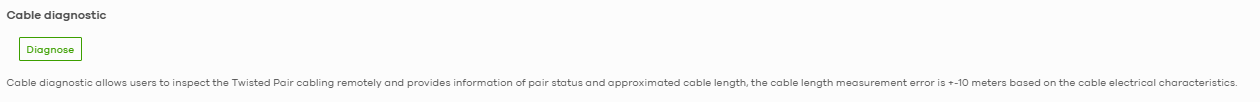

A1: Go to Site-wide > Devices > Switches > [Switch Name] > [Port Number], scroll down to Cable Diagnostics, and click it.


Q2: Understanding the Cable Diagnostics Status of Switches on Zyxel Nebula

A2:

Field

Status

Pair Status

OK: The physical connection is okay.
Open: No physical connection (an open circuit detected)
Short: There is a short circuit detected between the wire-pair.
Unknown: The Nebula Device failed to run cable diagnostics on the cable connected to this port.
Unsupported: The port is a fiber port or it is not active.

Cable Length

Value: Total length of the Ethernet cable. There are devices on both sides of the cable
N/A: Pair Status is Open or Short, Go to Check the Distance to fault.
Unsupported: The Nebula Device chipset does not support

Distance to fault (m)

Value: Distance between the port and the location where the cable is open or shorted.
N/A: The Pair Status is OK.
Unsupported: The Nebula Device chipset does not support

Note:

The displayed cable length value may vary depending on the cable quality and the connected remote device.
Also, cable length measurements are generally more accurate when the cable is longer than 10 meters.

If you encounter any other issues, please help create a post here and tag @Zyxel_CSO , or create a ticket directly to reach us.
