Remote Access IPSEC VPN doesn't work

Jerome89

tgbvpn20251016_115348.log

Hello,

I did setup Remote Access IPSec VPN using SecuExtender. I can't make it work. To troubleshoot I connected the client directly to the wan network of the USGFlex200 (192.168.250.50/24) . Here is attached the SecuExtender console output. I'm a new Zyxel user, so I probably have missed something obvious in the configuration (even if I used the wizard) ?

Thanks in advance,

Best regards,

Jerome

PeterUK

So you enterer the VPN settings manually in SecuExtender?

Jerome89

Hi Peter - thanks so much for this detailled answer !

I did all of that - but you know what - I'll restart from scratch and will let you know.

Do you know if there is a way to use pre-shared instead of certificate for remote access (it should as you have this option in SecuExtender) ? Where do you configure the pre-shared on the GW side ?

Thanks again,

Have a good day

PeterUK

With the wizard did you select IKEv2?

Jerome89

Yes IKEv2. Wizard screenshots attached.

Config.pdf

PeterUK

Log are saying Self-signed certificate not accepted, on SecuExtender are you using the "get from server" under configuration?

Zyxel_Tina

Hi @Jerome89,

Welcome to Zyxel Community!

After analyzing, your USG FLEX is using a self-signed certificate with a private WAN IP.

Since this is not a public IP, the VPN gateway is likely behind another router, causing the certificate validation and IKEv2 negotiation to fail.

Please check the following:

• Make sure the USG FLEX has a public IP or that UDP ports 500 and 4500 are forwarded from the upstream router.
• Use a certificate whose CN matches the public IP used by the client.

The VPN should connect if the gateway is reachable on a valid public address.

Jerome89

https://community.zyxel.com/en/discussion/comment/80923#Comment_80923

Yes I tried this during my tests, without really understanding what it was suppodes to do. I guessed it was a way to get the VPN RAS Setup from the GW ; anyway it failed.

Jerome89

Hi Tina,

Thanks for your answer.

You're right my Zyxel is behing a NAT router. But as it didn't work, in order to isolate issues & troubleshoot, I did put the client computer with SecuExtender on the same network as the wan1 interface ⇒ Client and GW are on the same Net, so no NAT is involved. So for this test, configuration (including self-signed certificate) should be consistent (?). Would it be smarter to try with the edge_certificate for testing purpose ?

Question : In SecuExtender, Configuration/Wizard menu, IKEv2, in the 2/3 menu it's asking for a shared key or a certificate (to authenticate the GW I guess). If using a shared key where is it configured on the GW (I'm only using Remote Access VPN, no site-to-site) ? (Just to try with pre-shared instead of certificate)

Thanks in avance,

All the Best,

Jerome

PeterUK

So you enterer the VPN settings manually in SecuExtender?

Jerome89

Hi Peter - yes I entered them manually using the wizard.

Jerome89

(Sorry the thread is still opened - I closed it by mistake - is there a way to mark it unansered ?)

PeterUK

In which case you need to download the certificate USG made to the SecuExtender

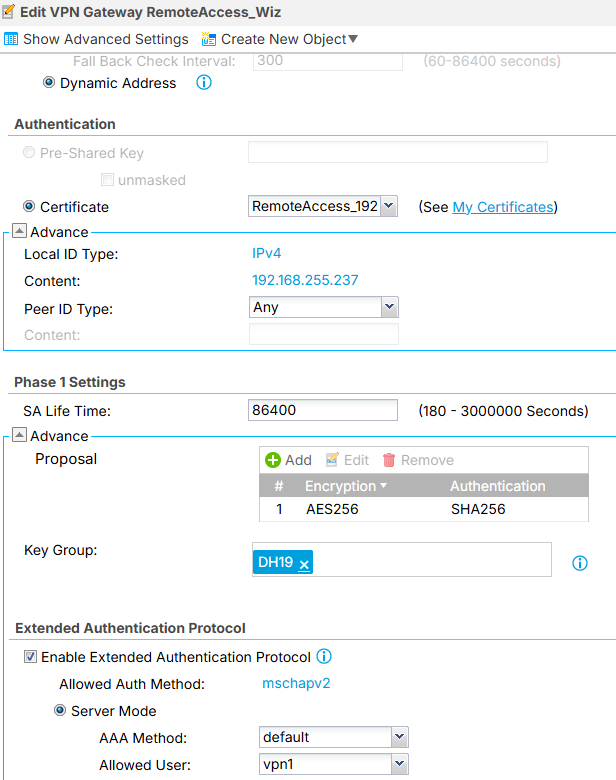

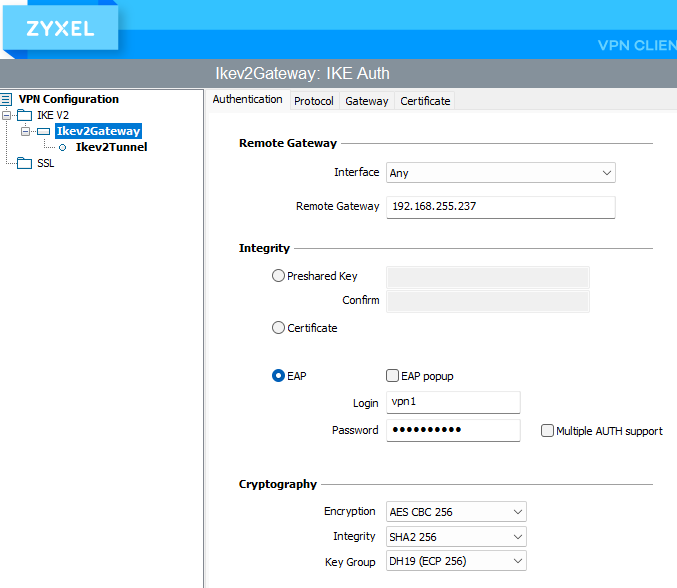

copy gateway setting to SecuExtender

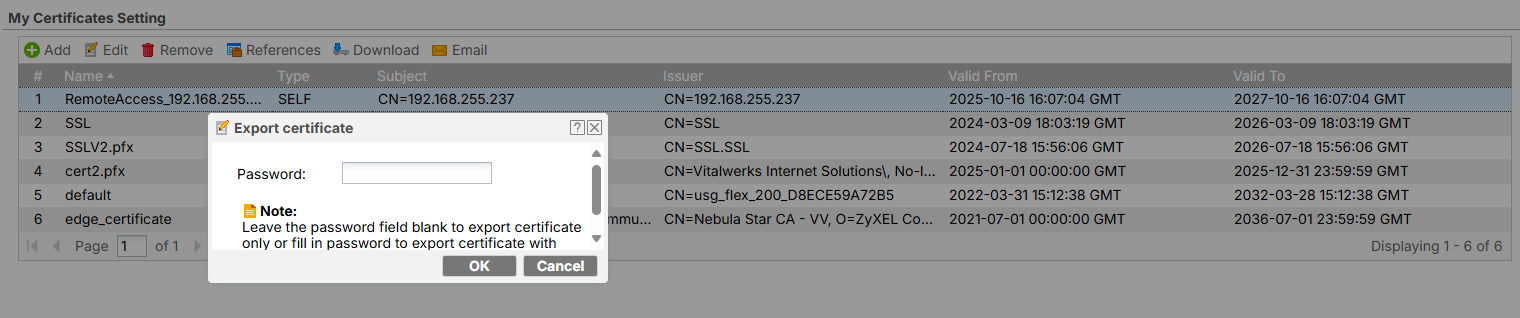

download certificate without a password

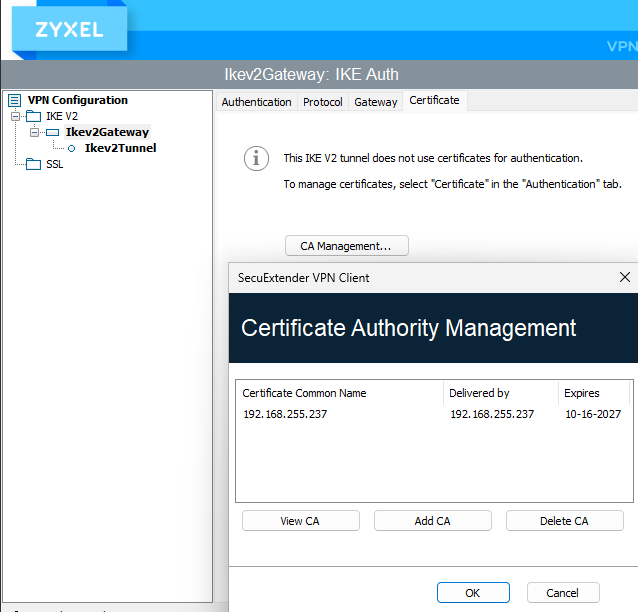

added to certificate SecuExtender

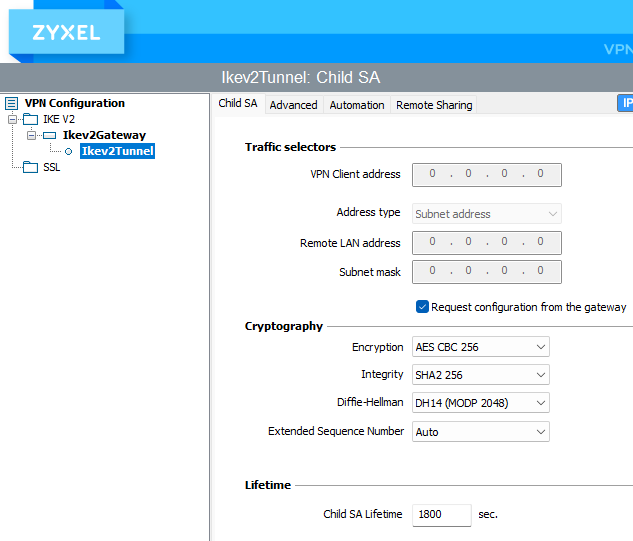

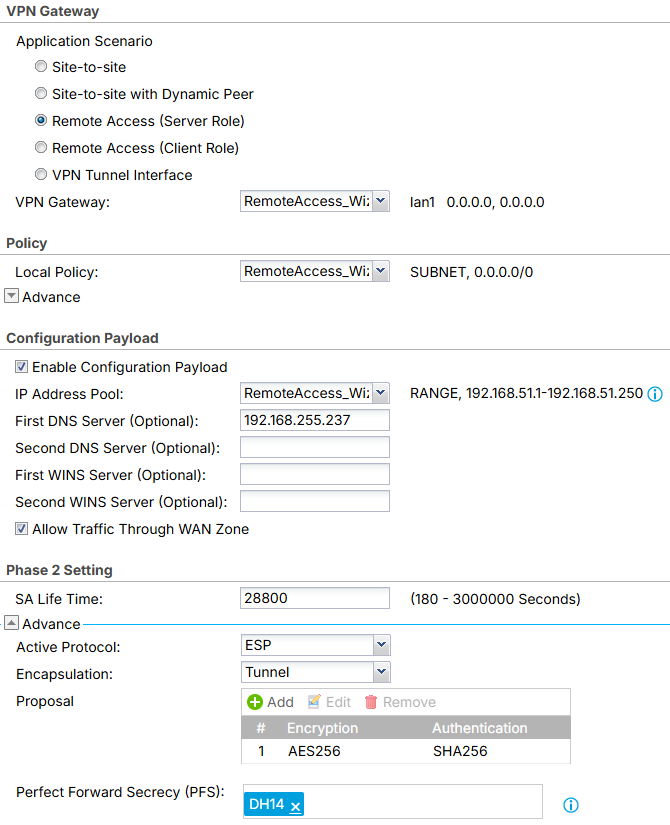

copy VPN tunnel setting to SecuExtender

For the VPN to work by WAN as you are behind NAT you need to make a certificate with that WAN IP and set it to be used in VPN gateway setttings and SecuExtender.
