Devices in mgmt VLAN reachable by VPN and local Clients

Sergi330

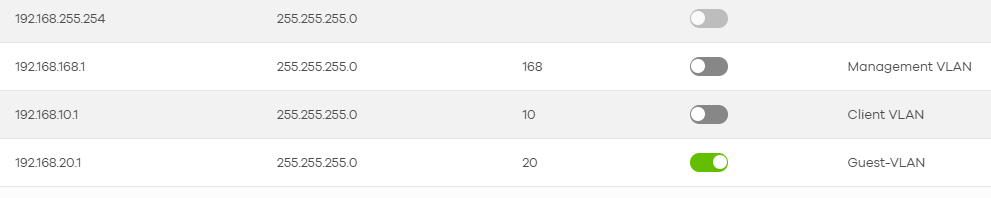

I have configured a mgmt VLAN in my test network, ID 168

I have USG Lite 60AX, GS1920-24HP and NWA1123.

I followed the procedures described in the FAQ, and everything seems fine.

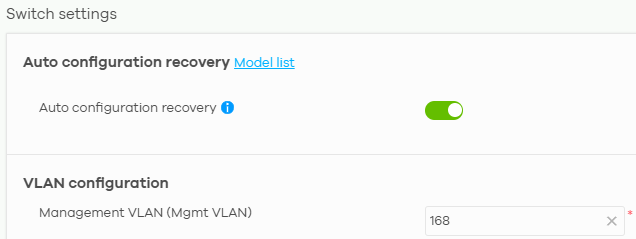

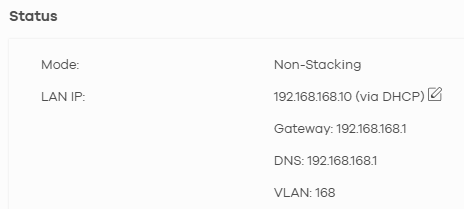

Switch:

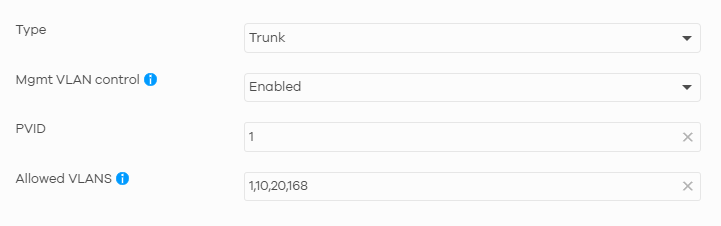

This is the trunk port profile, for USG and AP:

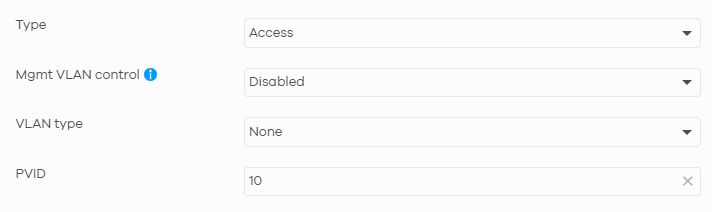

This is the trunk port profile, for client (VLAN 10)

And this is the AP configuration:

However, when I connect to the AP (correctly in a VLAN with ID 10) or a client port or from a remote access VPN (with another subnet, the default 192.168.50.xxx) I can access in the switch gui by entering the switch's IP address.

Must there be a rule I need to set up, or did I enter something incorrectly in the settings? In the firewall I only have the basic rules that NCC automatically generates.

Zyxel_Barry

Hi @Sergi330,

You're encountering a common scenario when configuring management VLANs, where devices in other VLANs or connected via VPN can still access the management interface of your switch. This is often due to the default behavior of how management VLAN control operates, especially in Nebula, and how inter-VLAN routing is handled by your firewall.

Here's a breakdown of the issue and the recommended steps to enhance the isolation of your management VLAN:

• Understanding Management VLAN Control: In Zyxel Nebula switches, "Management VLAN Control" determines where management VLAN traffic can exit. By default, the management VLAN is often enabled on all ports to ensure devices remain accessible during initial setup or configuration changes. It operates independently of the "Allowed VLANs" list on trunk ports.

• Inter-VLAN Routing: Your USG LITE 60AX, as a router, facilitates communication between different VLANs. If there are no specific firewall rules to block traffic between your client VLAN (VLAN 10), VPN subnet, and the management VLAN (VLAN 168), then devices in these subnets will be able to reach each other.

Here are the steps to address this:

1. Configure Management VLAN Control on Switch Ports:

   • Navigate to your switch settings in Nebula.
   • For switch ports connected to client devices or APs that should not have access to the management VLAN, ensure that "Management VLAN Control" is disabled. This prevents the switch from assigning these ports as members of the management VLAN.
   • For trunk ports connecting to your USG LITE 60AX and APs that do need to carry management VLAN traffic, "Management VLAN Control" should remain enabled.

2. Implement Firewall Rules on USG LITE 60AX:

   • Since your USG LITE 60AX handles inter-VLAN routing, you need to create explicit firewall rules to restrict access to the management VLAN (VLAN 168) from your client VLAN (VLAN 10) and your VPN subnet.
   • These rules should be configured to deny traffic from the source (VLAN 10 subnet and VPN subnet) to the destination (VLAN 168 subnet) on the relevant ports and protocols (e.g., HTTP, HTTPS for GUI access).
   • Nebula's automatic firewall rules might not include these specific isolation policies, so manual configuration will likely be necessary.

To help us investigate further and provide more specific guidance, please provide the following information:

• Network Topology Map: A simple diagram showing how your USG LITE 60AX, GS1920-24HP, NWA1123, and client devices are physically connected, including which ports are used.
• Screenshots of Firewall Rules: Please provide screenshots of the current firewall rules configured on your USG LITE 60AX in Nebula.
• Enable Zyxel Support Access: Go to Help > Support Request in your Nebula console and enable Zyxel Support Access. Please provide the Organization Name and Site Name. This will allow our support team to view your cloud configuration directly for more efficient troubleshooting.

Sergi330

Topology:

USG LITE 60 AX

— port 4 -> GS1920-24HP port 25

GS1920-24HP

— port 1-3 -> trunk ports for Access Point (actually used only port 1 for test)
— port 4 -> PC admin access (VLAN 168)
— port 10-20 -> clients ports (VLAN 10)
— port 25 -> trunk port for USG lite 60 AX port 4
— port 26-28 -> trunk port for other futures switches

This his the screenshots of Firewall Rules:

I have enabled Zyxel support access.

There is only one organization, the site in question is "Plane"

Zyxel_Tina

Hi @Sergi330,

After reviewing, the switch configuration appears correct with no issues found there.

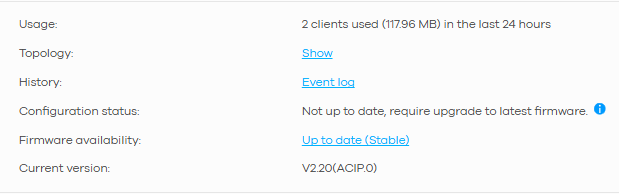

Additionally, we noticed your USG Lite 60AX configuration is not up to date.

This prevents your security policy settings from taking effect properly, which could be affecting the management VLAN. Please update the USG Lite 60AX to the latest firmware version first, ensure the configuration status is up to date, and then check if the management VLAN issue still persists.

(Site-wide > Configure > Firmware management)

Sergi330

Hi Tina,

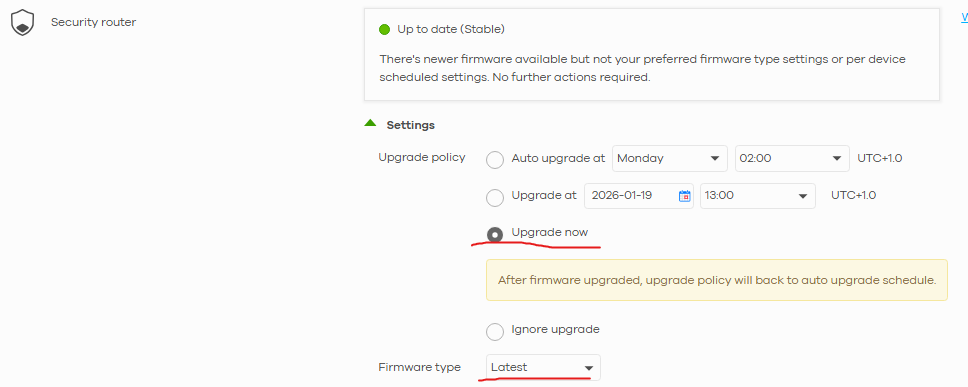

I updated the firmware from stable to latest.

I tried with VPN but I can still reach the devices on the mgmt VLAN.

The firewall rules are correct?

Sergi330

I confirm that clients always see devices in the mgmt VLAN after firmware update.
Not only VPN users (192.168.50.xx) but also those on the 192.168.10.xxx network.

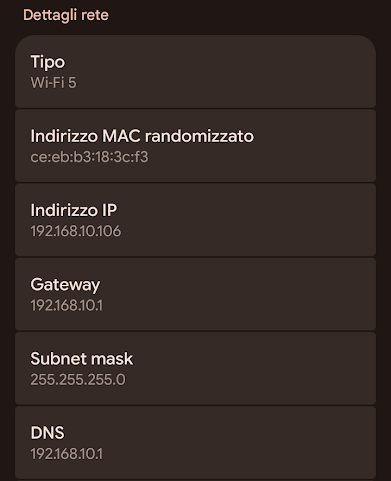

This is my phone which opens the home page GUI of the switch and USG LITE, it's a Wifi Client, in the correct network:

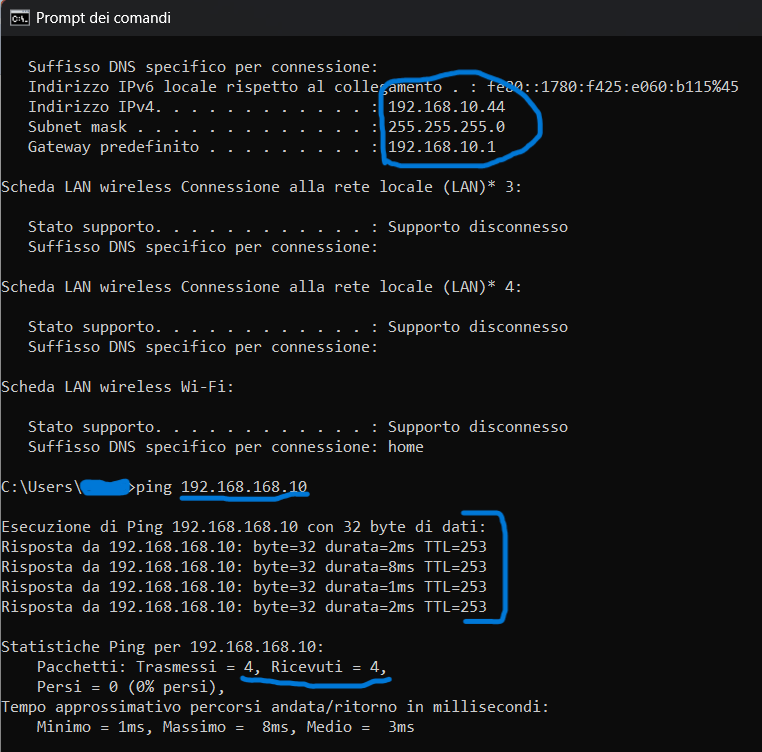

and also the clients connected directly to the switch ports with the client profile. The PC also correctly acquired the DHCP data in the correct client network. This is demonstrated by the ipconfig which, unfortunately, also shows that it can reach the switch without problems at the address 192.168.168.10

Zyxel_Tina

Hi @Sergi330,

Thank you for providing the details. We have received your information and are reviewing it to identify the issue. If we need any further details during our investigation, we will reach out to you.

Also, we'll inform you of any updates after our investigation. We appreciate your cooperation and patience.

Zyxel_Tina

Hi @Sergi330,

Regarding the security policy settings not applying properly, we now have datecode firmware that addresses this issue. Could you please confirm when we can push the firmware? We will deploy it to your site.

In addition, please slightly adjust the policies you've configured by changing the numbers to 0:

• Source: 192.168.10.1/24 → 192.168.10.0/24
• Source: 192.168.50.1/24 → 192.168.50.0/24
• Destination: 192.168.168.1/24 → 192.168.168.0/24

Sergi330

Hi @Zyxel_Tina,

I've changed the policy rules and you can update the firmware at any time.

The network is still being configured, I was waiting for this issue to be resolved!

I'm waiting for notification of the firmware update, to run the tests.

thanks!

Sergi330

Hi @Zyxel_Tina

I saw that a firmware update was made on my site router and I tested it.

Clients on VLAN 10 and the VPN clients now no longer reach the switch 192.168.168.10, but they can still reach the USG lite router 192.168.168.1.

Zyxel_Tina

Hi @Sergi330,

Thank you for your feedback!

We've replicated the same issue you are encountering, where clients can reach the USG LITE 60AX. We are investigating and will update you once we have more information.
