vlan 2 cannot got the DHCP from zyxel firewall

simonwong

I have 3 firewall usgflex100 which are installed different office, and connecting to some NWA50AX access point.

We have 3 vlan and they are running smoothly before April .

One of the vlan vlan2 cannot get the IP address from the router since April may be…vlan 1 and 3 have no issue. I need reboot all the access point every Monday by manually when I back to office at 9am that can be solved. I tried to set the reboot by schedule on Monday at 6 but cannot be solved.

Access point firmware: V7.10(ABYW.4)

Firewall firmware: 5.42(ABUH.1)

Anyone has this issue? Please help, thanks!

Zyxel_Melen

Hi @simonwong

I would like to know your topology first, since if there has a switch between the firewall and AP, the switch needs to set the VLAN setting correctly.

If the VLAN setting is correct, or the AP connects to the firewall directly, please help to capture the DHCP packet on the firewall for VLAN 2 interface.

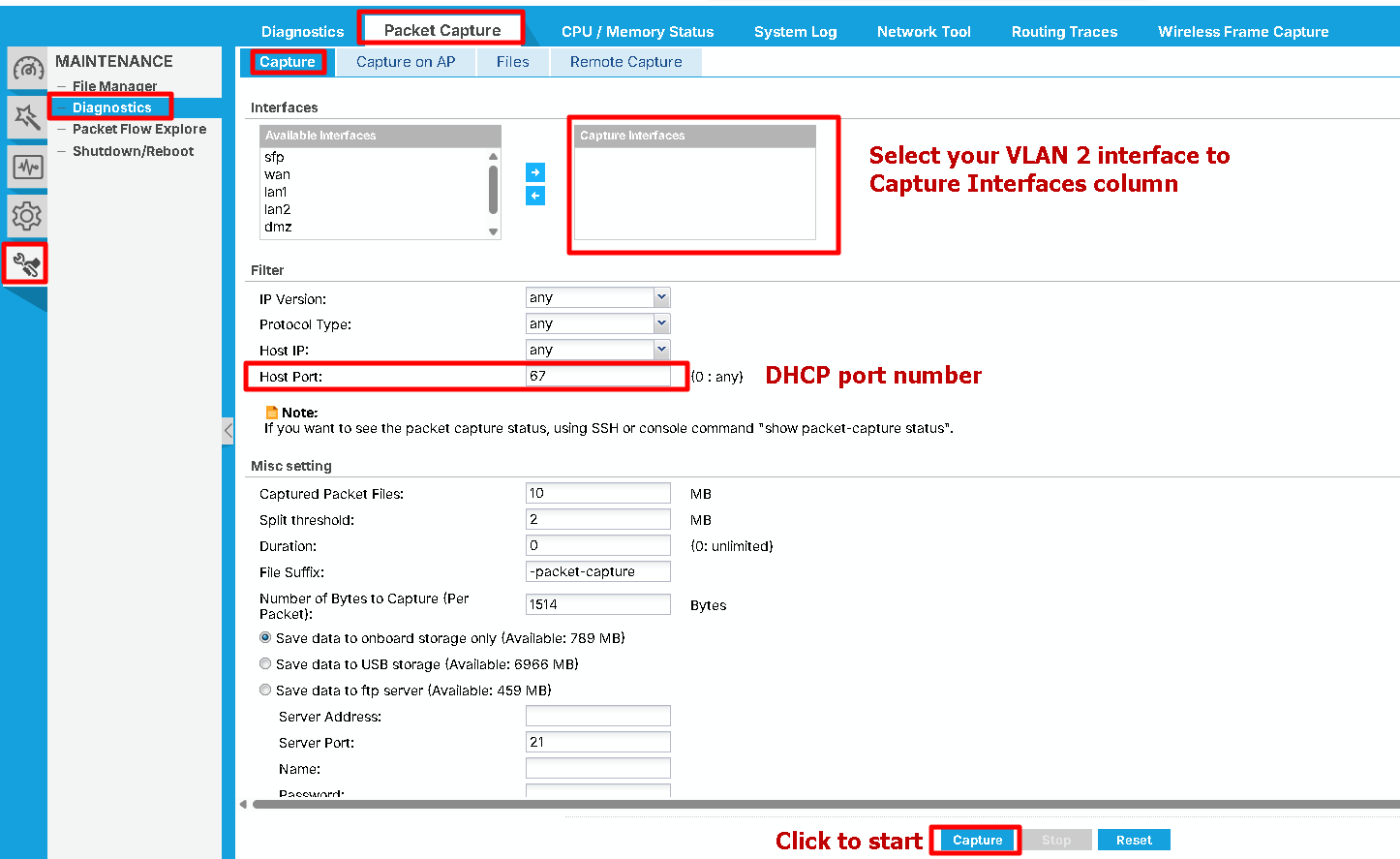

Capture packet:

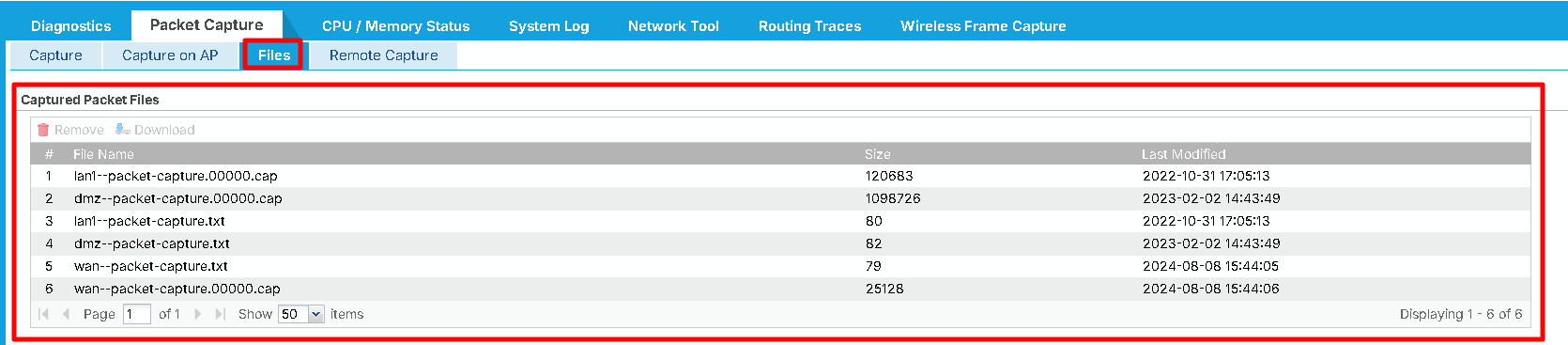

Packet file can be found in:

Zyxel_Melen

Also, please check the VLAN2 DHCP pool size settings and the firewall DHCP log. If the DHCP pool is full, which means the IP addresses are all provided, the new clients can't get IP from the firewall. You will need to adjust the lease time and/or DHCP pool size to resolve this issue.

simonwong

vlan21--packet-capture (1).txt

The DHCP pool is not full for each office. Pool size is 80 and we have not more than 30 devices need to connect.

Least time is 1 day.

Zyxel_Melen

Hi @simonwong

Thanks for your feedback, but I'm a little confuse now. You mentioned it was VLAN 2, but the packet capture is VLAN 21. Was the VLAN 2 a substitute or?

Also, the attachment only shows the packet counter, but not the packet. Please check/share the .cap file instead.

simonwong

Sorry make you confused. For example for this office, i have vlan 1, vlan 11

vlan11--packet-capture.00000.zip

and vlan 21

Only vlan 11 has problem.

vlan11--packet-capture.txt

Zyxel_Melen

Hi @simonwong

Thanks for the packet. Could you help to share what device are the clients?

From the packet, I can see the firewall send DHCP offer and DHCP ack to the device. Please help to follow the FAQ below to capture the DHCP packet through the AP. Thanks!

How to Remote Capture Wireless Packets through an Access Point? — Zyxel Community

simonwong

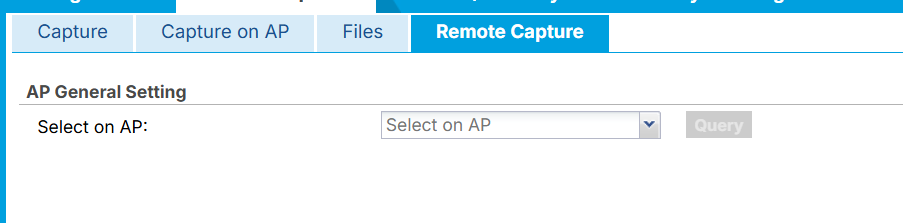

i did not put our access point devices for management.

Zyxel_Melen

Hi @simonwong

I think you reference this FAQ, which is not suit your case.

https://community.zyxel.com/en/discussion/22194/how-can-wireless-packets-be-captured-from-aps-managed-by-a-controller

Please reference this FAQ, which allows you to use the PC with wireshark to capture.

https://community.zyxel.com/en/discussion/22340/how-to-remote-capture-wireless-packets-through-an-access-point

simonwong

Hi Melen,

Sorry for late reply. I can say I find the problem about only vlan 21 has problem every Monday.

We configured the wireless schedule from Monday to Friday, 0830 to 1730 allow connecting to vlan21. After we disable the schedule, no issue was happen today (Monday). So I have no idea what happen in it.

Zyxel_Melen

Hi @simonwong

I assume the schedule is still in the configuration file. Could you help to share the configuration for us to investigate?

I will send you a private message so you may share the configuration there.
