Problem loading a .conf configuration file onto an ATP200.

pieroCastampi

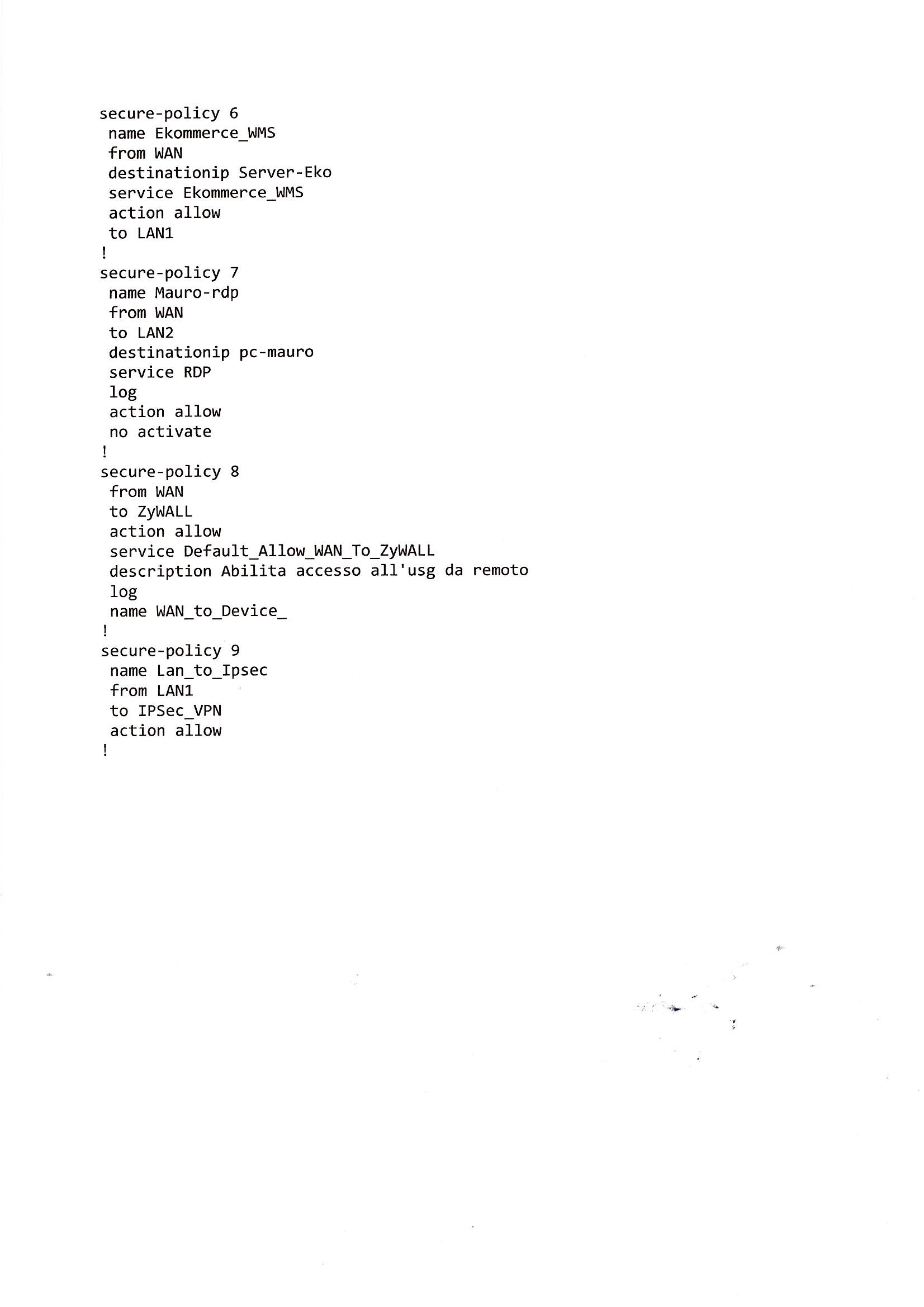

Good morning, I have a more specific update regarding this case. I tried pasting the entire contents of the .conf file via the CLI using Tera Term. I pasted the commands one by one until I reached the policies. After pasting one of the attached policies (I don't recall exactly which one), I lost the connection to the ATP200 and had to stop. This is a serious issue because I want to have a backup device ready in case the production unit fails; however, if I cannot load the configuration onto it at all, it is useless. Thank you for any suggestions you might have.


pieroCastampi

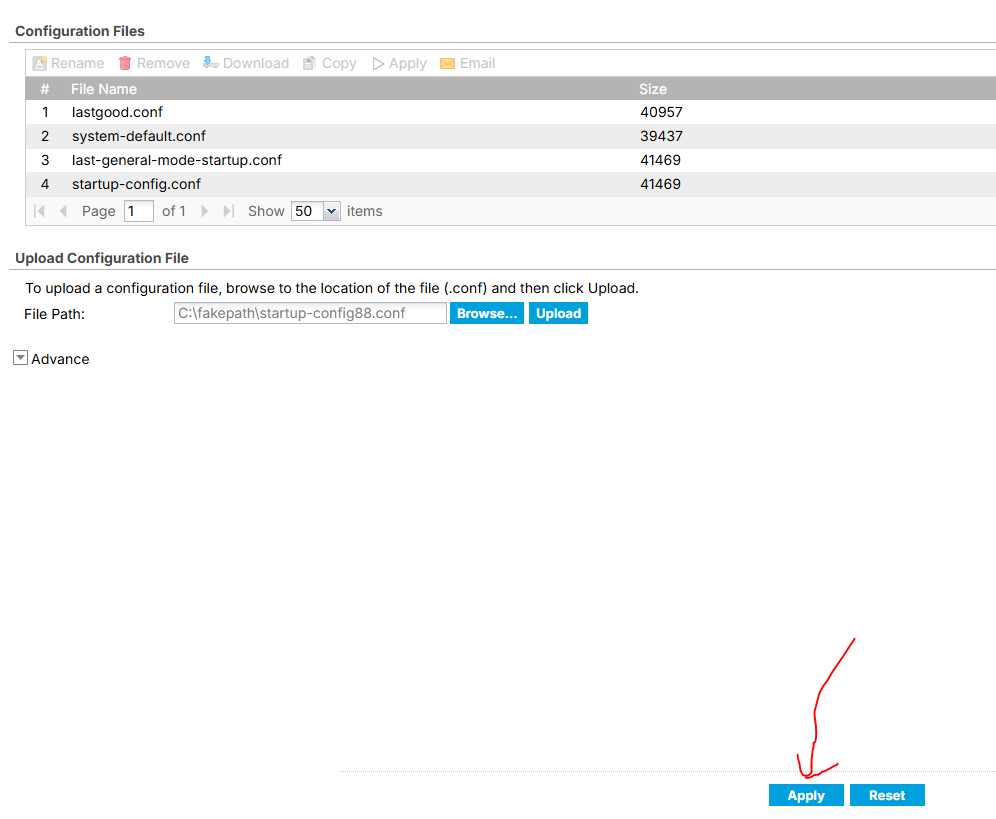

Good morning. I had already received this advice, but it doesn't work. I upload the renamed .conf file, but when I select "Apply," the file does not appear in the list. See the attachment. Thank you.


PeterUK

I think from what I can tell your doing is browse for the file then your clicking apply? thats not how you do it you browse for the file click upload then it will show in the file name list above then select it and click apply

Zyxel_Judy

Hi @pieroCastampi ,

We recommend using the upload-and-apply method for the configuration file, as it's more convenient and quicker than pasting the text into the CLI window.

From your private message, we noticed that you hadn't completed the upload process — you had only browsed for the file. Below are the step-by-step instructions for uploading and applying the configuration file to the ATP200. Please follow these steps, and note that you should click the Apply button at the top of the configuration file table, not the one at the bottom of the page.

How to upload and apply a Configuration File on a ZLD Firewall (ATP / USG FLEX)? — Zyxel Community

pieroCastampi

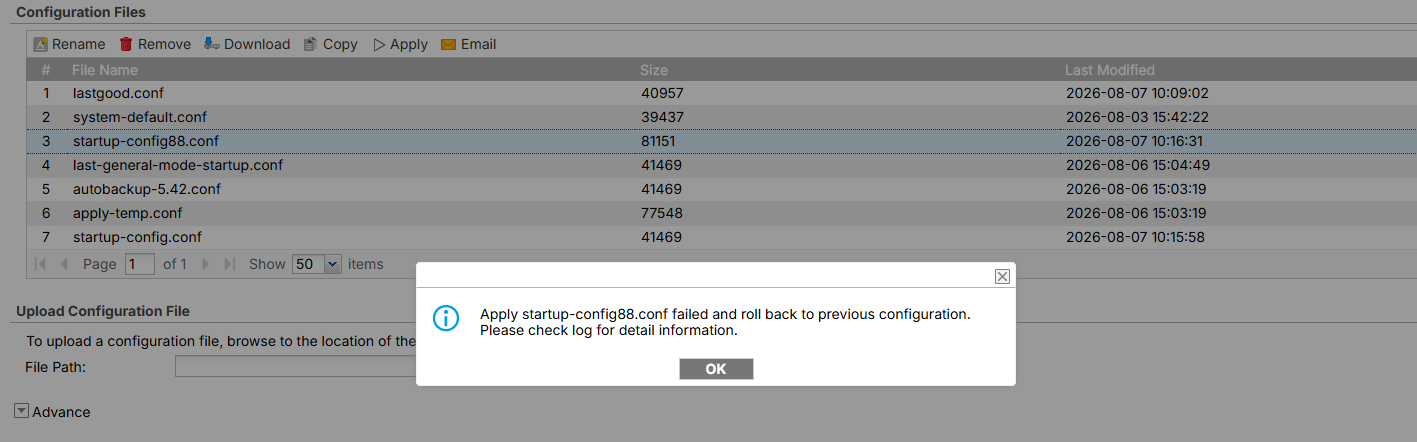

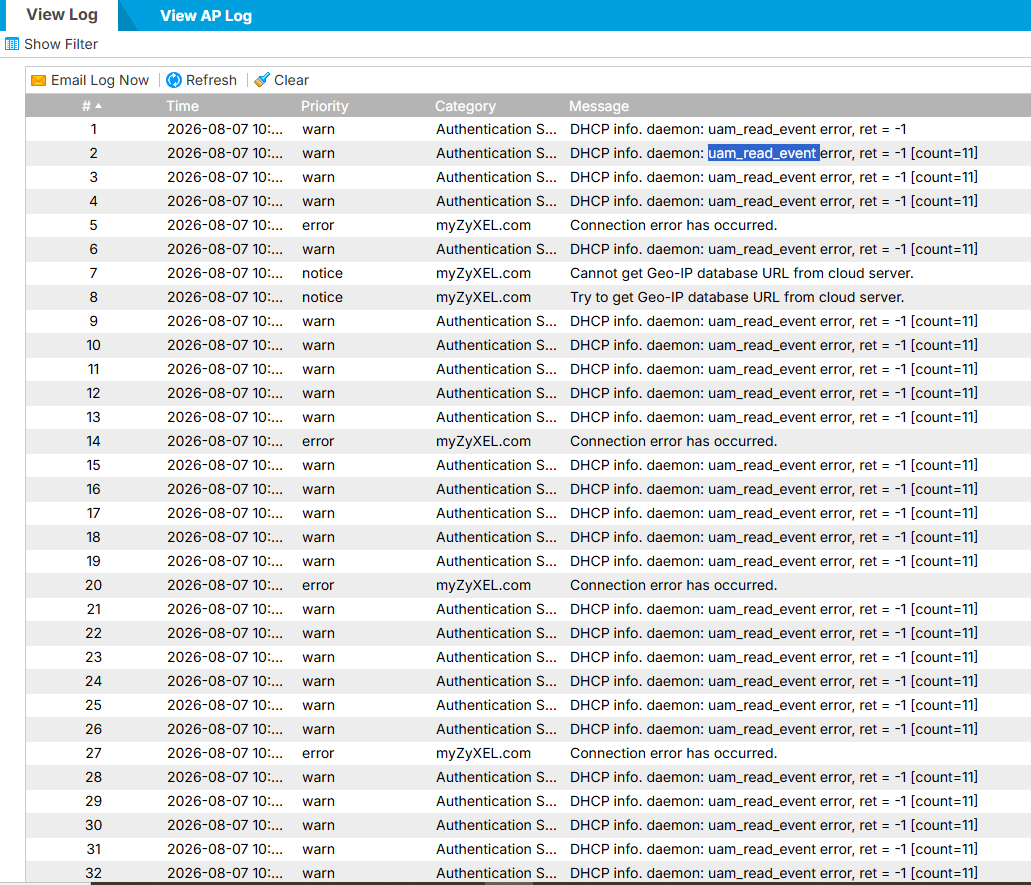

Good morning, I uploaded the configuration file to the list as instructed. I then selected and applied it, but it didn't work. I am attaching the error message and the log. Thank you.



Zyxel_Judy

Hi @pieroCastampi ,

Based on the message you shared, it looks like you may still be using the default option, "Immediately stop applying the configuration file and roll back to the previous configuration." When the configuration file contains something incompatible with the new device — for example, the PPPoE account credentials — the apply process stops immediately as soon as it hits that incompatibility.

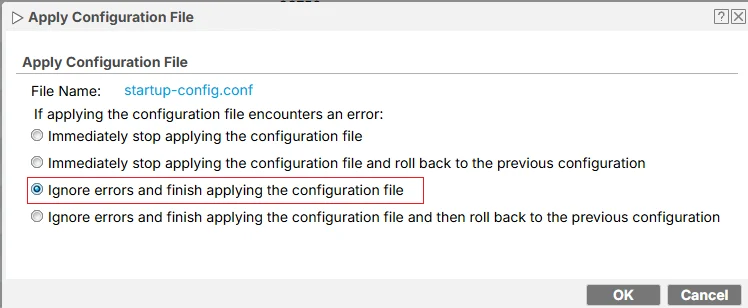

Could you please try Option 3 instead? This applies the compatible parts of the configuration file while skipping the incompatible ones, so the process can complete. Afterward, you'll need to manually reconfigure the settings that were skipped — such as the PPPoE username/password and any other device-specific values that aren't carried over during export/import.
