How to use Armor X1 in a bridged network?

Makarios

I have a separate firewall and Zyxell repeater connected to it to be a wireless network provider. How should I connect Armor X1 to be as a wifi extender?

#Repeater_Aug

Teemo

Can you share your network topology? Do you want Armor X1 as AP or RP or Client?

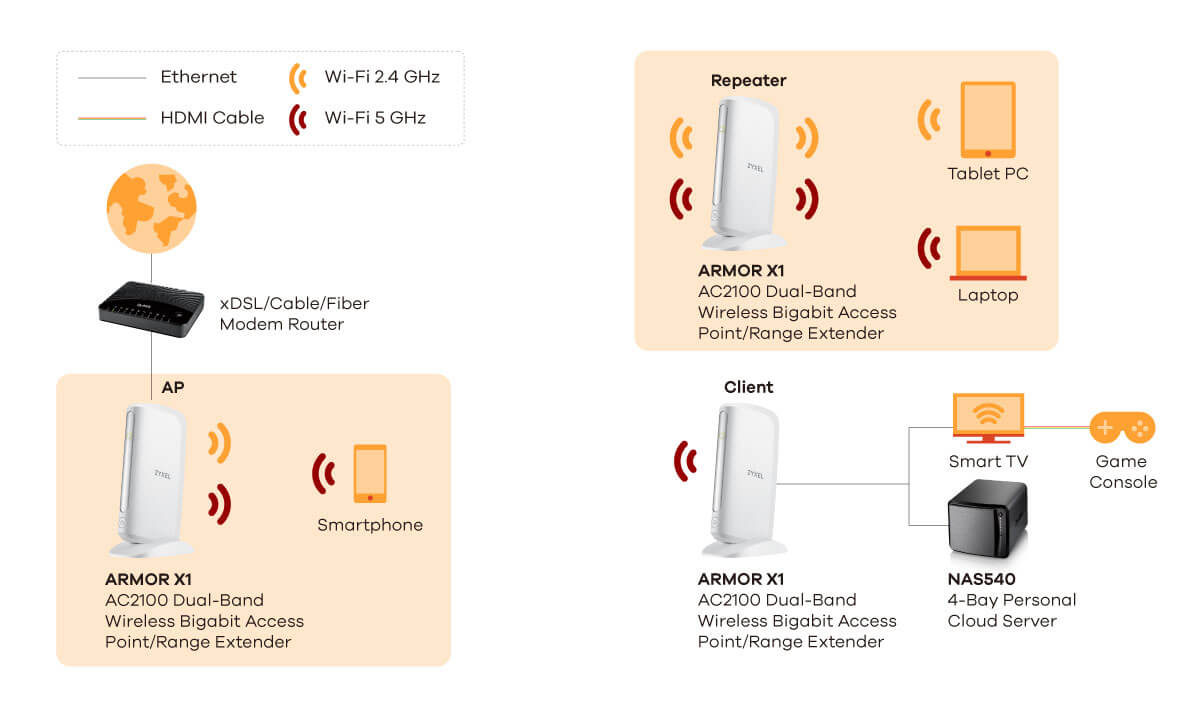

Here are Application Diagram for your reference.

You also can check User's Guide - Chapter 10 Operation Mode.

Makarios

Thanks very much Teemo. Those images are more clear than in the user guide. It seems that the repeater mode is best to my situation.
