NAS542: How do I establish serial connection?

Options
1235»

All Replies

  • greenwitch
    greenwitch Posts: 8  Freshman Member
    First Comment Fifth Anniversary

    Does anybody remember right order of the pins?

    Ad

  • Mijzelf
    Mijzelf Posts: 2,956  Guru Member
    250 Answers 2500 Comments Friend Collector Seventh Anniversary

    https://web.archive.org/web/20180101180026/http://zyxel.nas-central.org/wiki/Serial_port_(NAS540)

  • stein_990
    stein_990 Posts: 33  Freshman Member
    First Comment Friend Collector
    https://community.zyxel.com/en/discussion/comment/36542#Comment_36542

    Hello. Do you have a dump with spi left? What programmer did you use to upload it?

  • stein_990
    stein_990 Posts: 33  Freshman Member
    First Comment Friend Collector
    https://community.zyxel.com/en/discussion/comment/36623#Comment_36623

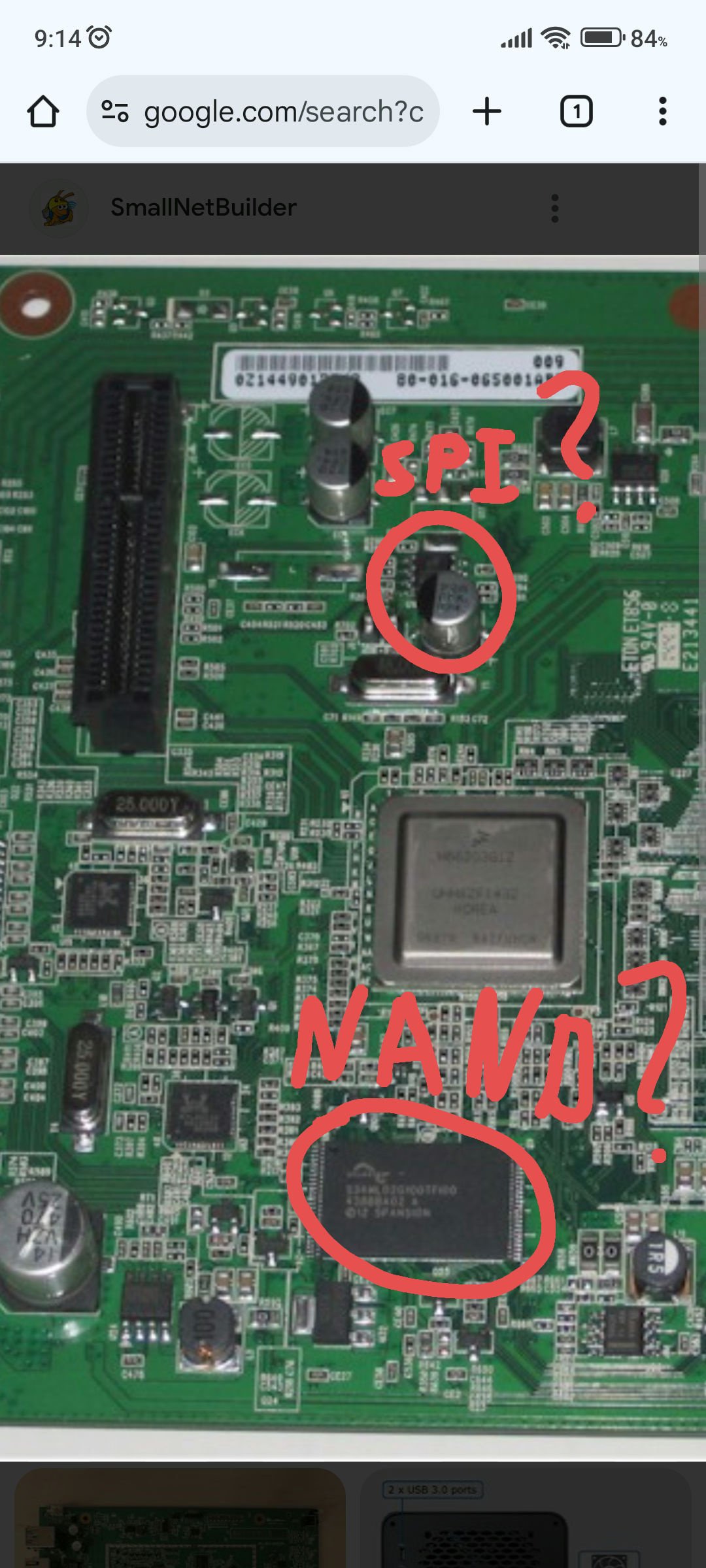

    If this is spi, can you share the dump? Please!!!)))

  • bugblatterbeast
    bugblatterbeast Posts: 31  Freshman Member
    First Comment Third Anniversary

    Sorry, I do not really understand your messages? What state is your device in and how are you trying to connect to it?

    Maybe I misunderstand you. Have you seen the pictures I've posted on Page 4 of this thread? I've marked the serial port connection pins on image 9.

    Yes, I still have three different dumps of all the local devices.

    after step 1: stock ROM bootable
    after step 2: fixed Debian OpenMediaVault ROM
    after step 3: firmware upgrade done

    each one contains these files:
    -rw-rw-r-- 1 user users 512K Dez 17  2021 barebox.bin
    -rw-rw-r-- 1 user users  10M Dez 17  2021 config.bin
    -rw-rw-r-- 1 user users 256K Dez 17  2021 env.bin
    -rw-rw-r-- 1 user users  10M Dez 17  2021 kernel1.bin
    -rw-rw-r-- 1 user users  10M Dez 17  2021 kernel2.bin
    -rw-rw-r-- 1 user users 5,0M Dez 17  2021 reserved.bin
    -rw-rw-r-- 1 user users 110M Dez 17  2021 rootfs1.bin
    -rw-rw-r-- 1 user users 110M Dez 17  2021 rootfs2.bin
    -rw-rw-r-- 1 user users 256K Dez 17  2021 uloader.bin

    Compressed each of the three dumps is around 110 MB, I tried to upload, but it failed (timeout). What are you trying and what exactly do you need?
