NR7101 Module Firmware Upgrade Fail

Mayone78

https://community.zyxel.com/en/discussion/comment/69906#Comment_69906

Which is the same of the firmware I've installed as you can see.

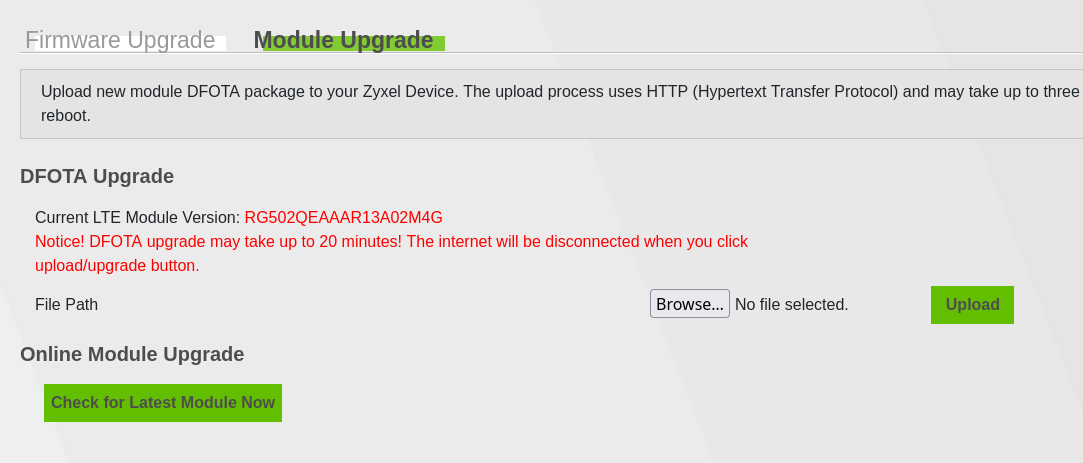

Screenshot from 2024-09-25 21-37-05.png

tonygibbs16

https://community.zyxel.com/en/discussion/comment/69908#Comment_69908

Thanks very much @Mayone78 for the screenshot.

This shows that your NR7101 is running 13A02 module firmware.

This means that the DFOTA upgrade file that you need is the one that is 13A02 to 13A04

Kind regards Tony

Mayone78

https://community.zyxel.com/en/discussion/comment/69910#Comment_69910

that does’t work, as I said at the beginning.

tonygibbs16

https://community.zyxel.com/en/discussion/comment/69911#Comment_69911

Does the online module upgrade check work at all for you @Mayone78

If not then I am stuck.

Kind regards Tony

rombanek22

Hi is any idea what need to do about upgrade 13A02 to 13A04

monstrmprz

https://community.zyxel.com/en/discussion/comment/69913#Comment_69913

that doesn't work either.

Mayone78

https://community.zyxel.com/en/discussion/comment/69913#Comment_69913

no

SELBERG

Any news from Zyxel about R13A04 not working?

spezwend

Same here, DFOTA Upgrade fails.
Current LTE Module Version: RG502QEAAAR13A02M4G

Upgrade file name: RG502QEAAAR13A02-R13A04.zip

Tried different names like 20 times,

lynxthecat

Same here. There is a version mismatch in respect of:

RG502QEAAAR11R13A02-R13A04

as listed here:

https://support.zyxel.eu/hc/en-us/articles/4403365084818-Zyxel-5G-Devices-NR-Series-Advanced-Downloads-Firmware-and-other-resources#h_01J7ZRPS4WKP2D0F6D46MPAEQ3

Look inside the zip file and the file "quectel-project-version":

Project Name: RG502QEA_ZYXEL_VA
Project Rev : RG502QEAACR13A02M4G_ZYXEL_01.001
Branch Name: SDX55
Custom Name: STD
Package Time: 2022-10-08,15:26

Notice the AACR, but the modem reports:

ati

Quectel
RG502Q-EA
Revision: RG502QEAAAR13A02M4G

That is AAAR.

This gives an error 505 on upgrade (here attempted manually):

at+qfotadl="https://zyxeleurope.sharepoint.com/:u:/s/ZyxelSupportCampusEMEA/EfIaKh5A0-xHquodIeysno8BmgaVV5tTKMLfClLotWMi3A?download=1"

OK

+QIND: "FOTA","HTTPSTART"

+QIND: "FOTA","HTTPEND",0

+QIND: "FOTA","END",505

which relates to a version mismatch.
